- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-4677
- Processor Supported
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
- Memory
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 8.0
- Controllers
- Controller Type
- NVMe
- RAID Supported
- Yes
- RAID Levels
- 0, 1
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Total Number of Expansion Slots
- 4.0
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 3
- Number of M.2 Interfaces
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.2 Gen 1 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 3
- Number of VGA Ports
- 1
- Power Description
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 800 W
- Physical Characteristics
- Color Family
- Dual Colour
- Product Color
- Silver
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 88.9 mm
- Width
- 436.9 mm
- Depth
- 299.7 mm
- Weight (Approximate)
- 7.71 kg
- Miscellaneous
- Package Contents

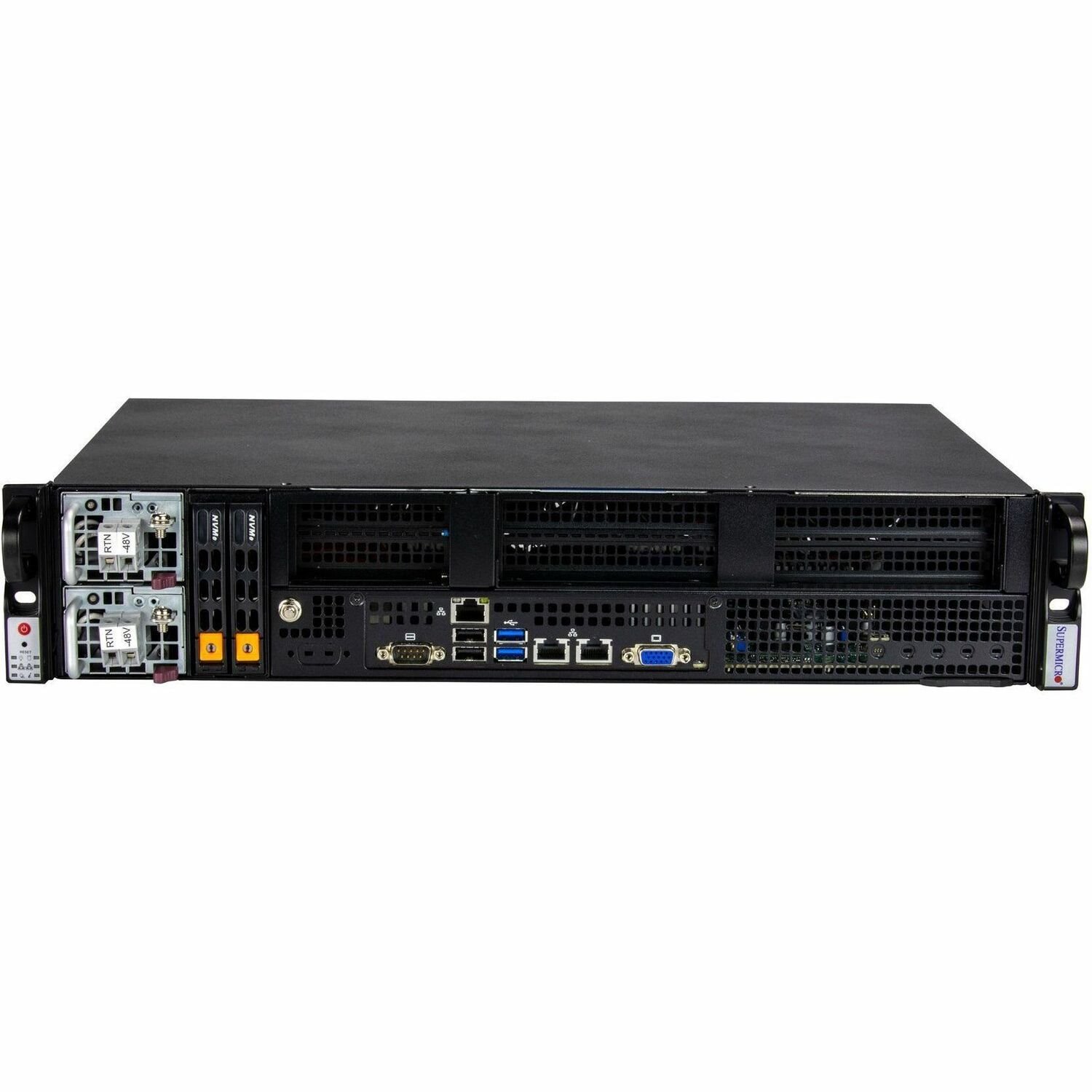

- IoT SuperServer SYS-211E-FRN2T
- 1 x Super X13SEM-TF Motherboard
- 1 x 2U Chassis
- 1 x 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
- 1 x MCIO x8 (STR to STR),30CM,85OHM,RoHS
- 1 x [NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS
- 1 x MCIO x8 (STR to STR),18CM,85OHM,RoHS
- 1 x MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
- 1 x MCIO x8 (STR to RA),30CM,85OHM,RoHS
- 1 x [NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
- 2 x Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
- 2 x Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
- 1 x 1U height IO shield for X13SEM-F/TF MBD, with gasket, bl
- 1 x Mylar air shroud for 211M w/ X13SEM-TF
- 1 x 211E-FRDN2T/FRN2T Quick Reference Guide
- 1 x 2U support redundancy powers up to 800W for SC211M with 2 Mi
- 2 x 800W 100-240Vac input, Platinum, base module PWS-804P-1R
- 1 x 1U LHS Standard riser card with one PCIe 5.0X16andonePC
- 1 x License key for enabling OOB BIOS management
- 1 x 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
- 4 x 80x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
- 1 x 16 pin Cable Adaptor Board for SC826
- 1 x 1U height sliding rail for SC211M chassis
