- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com/gb/en
- Brand Name
- Zebra
- Product Line
- Symbol
- Product Type
- Barcode Scanner

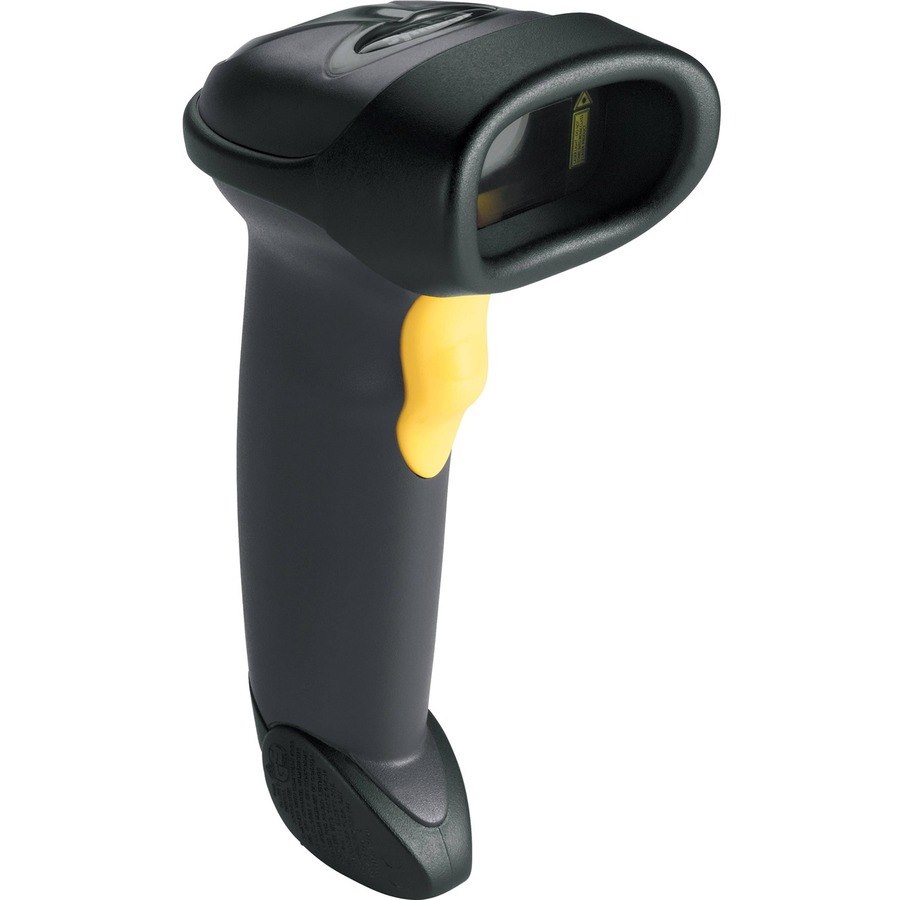

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range from near contact to 17 inches makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- Barcode Symbology Supported
- Full ASCII
- Discrete 2 of 5
- Codabar
- Code 128
- Code 11
- UPC
- Interleaved 2 of 5
- Code 128 Full ASCII
- Code 39 Trioptic
- Light Source
- Laser
- Scan Rate
- 100 scan/s
- Scan Pattern
- Single Line
- Scanner Range
- Standard Range
- Scanning Distance
- 431.80 mm
- Cable Type Included
- USB
- Stand Included
- No
- Reading Angle (Skew)
- 60°
- Reading Angle (Pitch)
- 65°
- Reading Angle (Roll)
- 30°
- Maximum Ambient Light
- 86111 lux
- Drop Specification
- Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
- Minimum Print Contrast
- 20%
- Minimum Element Resolution (Code 39)
- 0.08 mm
- Maximum Element Resolution (Code 39)
- 1.02 mm
- Interfaces/Ports
- Host Interface
- USB
- Power Description
- Input Voltage
- 5 V DC
- Power Source
- USB
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Color Family
- Black
- Product Color
- Twilight Black
- Height
- 152.4 mm
- Width
- 63.5 mm
- Depth
- 84.8 mm
- Weight (Approximate)
- 146 g
- Miscellaneous
- Package Contents
- Symbol LS2208 Handheld Barcode Scanner
- USB Cable
- Ingress Protection (IP) Rating
- IP30
- Application/Usage
- Retail
- Education
- Platform Supported
- PC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
