- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com/gb/en
- Brand Name
- Zebra
- Product Type
- Barcode Scanner
Put plug-and-play high quality scanning wherever you need it
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more - and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

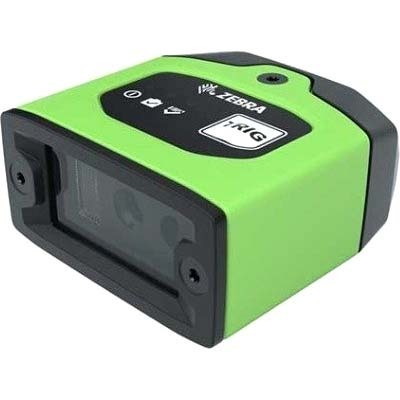

Now, you can address it all with the compact Zebra FS10 Fixed Industrial Scanner.1 With a slim profile, the FS10 easily fits everywhere you need scanning. Just plug the FS10 into the USB port of a workstation, laptop, tablet or any other host device to dependably capture barcode data, from assembly to storage and fulfillment.
Zebra's FS10 Fixed Industrial Scanner sets the bar for simplicity, advanced data capture and return on investment. It all starts with Zebra Aurora™ - a powerful and intuitive software platform that makes it exceptionally easy to set up, deploy and run all Zebra Fixed Industrial Scanners, including the FS10. Once up and running, Zebra-exclusive features including ImagePerfect and PRZM Intelligent Imaging deliver first-time, every-time data capture. As your needs change, easily add support for new codes and increased scanning speed - all through the simple purchase of software licenses that future-proof your investment. Take your success to the next level with extraordinary visibility into your operational processes - with the FS10, only from Zebra.
Easy to set up | Automatic setup with Auto-Tune
Just Auto-Tune and run for consistent, reliable read rates - right out of the box. With the press of one button, Auto-Tune dials in the perfect image for faster and more accurate set up.
Up and running in seconds
The FS10 is truly plug and play. Just plug the compact FS10 into the USB port of a workstation, laptop, tablet or any other host device to flawlessly capture the barcode data required to streamline inventory management, order fulfillment and more.
Easy to deploy | Ultra-rugged and ready for industrial spaces
Rely on dependable operation in the most demanding environments with an ultra-rugged design. The aluminum housing is chemical and oil resistant and IP65-sealed.
Operator feedback/status indicators
With built-in camera status LEDs - Power, Decode and Online/Run - workers can see at a glance if a decode was successful or unsuccessful, protecting product quality and traceability - and whether cameras are operational or in need of attention. In addition, a beeper with adjustable volume provides an audible cue of a successful decode, so workers can keep their eyes on the job - instead of the device.
- Technical Information
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D :
- Code 39
- Code 93
- Code 128
- I 2 of 5
- MSI Plessey
- UPC/EAN
- Aztec
- DotCode
- MaxiCode
- PDF417
- Micro PDF417
- QR Code
- Micro QR
- OCR-A
- OCR-B
- MICR
- US Currency
- Trainable OCR (available on select models or via an add-on OCR license)
- Light Source
- LED
- Image Sensor Type
- CMOS
- Imager
- Scanner Range
- Standard Range
- Scanning Distance
- 610 mm
- Field of View (Horizontal)
- 35°
- Field of View (Vertical)
- 26°
- Minimum Element Resolution (DataMatrix)
- 0.13 mm
- Maximum Element Resolution (DataMatrix)
- 0.38 mm
- Interfaces/Ports
- Host Interface
- USB
- Physical Characteristics
- Form Factor
- Fixed Mount
- Product Color
- Industrial Green
- Height
- 25.4 mm
- Width
- 43.2 mm
- Depth
- 50.8 mm
- Weight (Approximate)
- 119.9 g
- Miscellaneous
- Ingress Protection (IP) Rating
- IP65
- Application/Usage
- Industrial
- Warehouse
- Logistics
- Environmentally Friendly
- Yes
