- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- VERTIV
- Product Line
- PowerUPS 200
- Product Series
- PSA6
- Product Type
- Line-interactive UPS

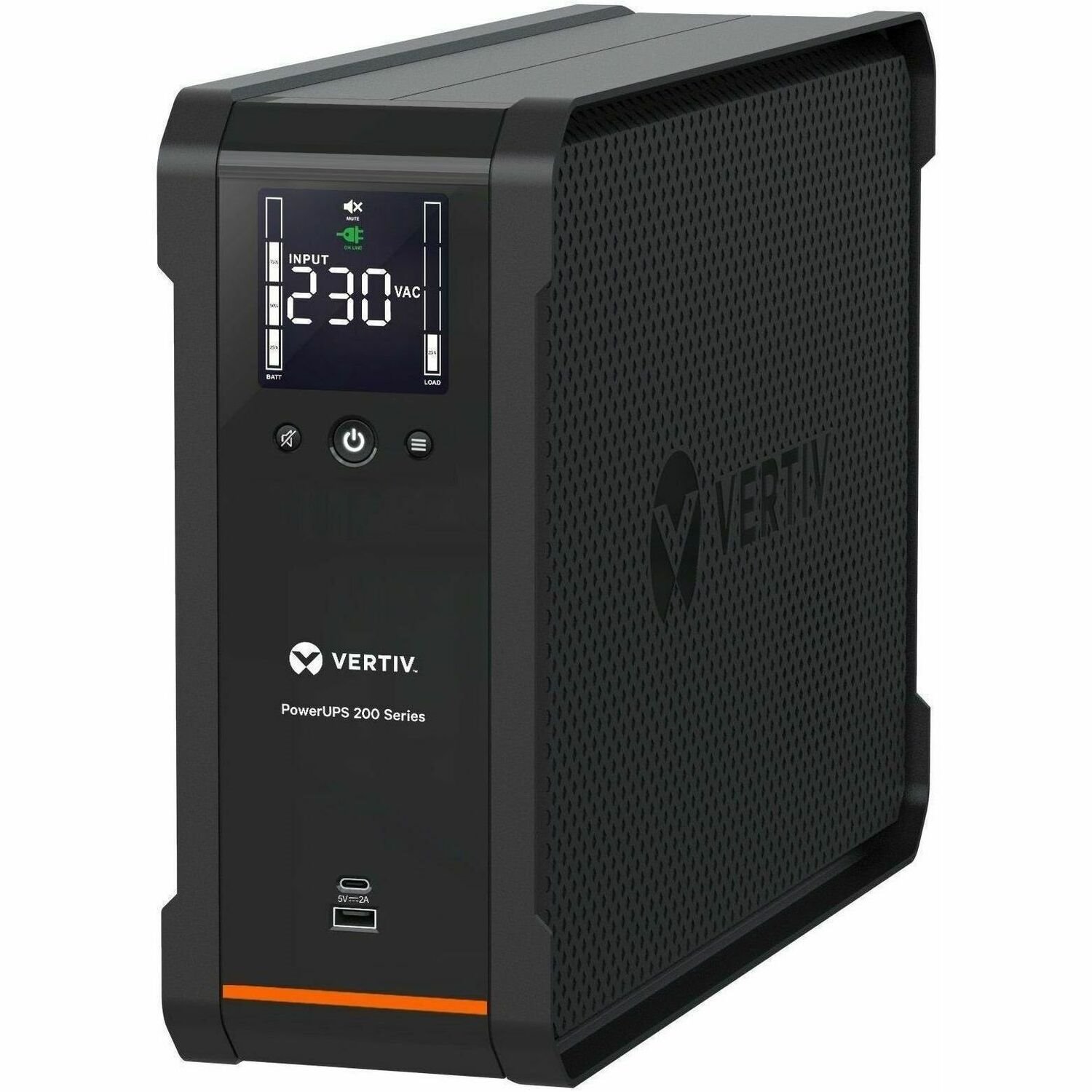

The Vertiv PowerUPS 200 Line Interactive Series PSA6-1000IT-IEC is a compact UPS offering reliable, high-performance battery backup and surge protection for desktop PCs, personal electronics, wireless networks, entertainment devices, surveillance systems, and retail point-of-sale (POS) systems. With automatic voltage regulation, it stabilizes input voltage fluctuations and provides clean, continuous power during outages or brownouts. Its intuitive color LCD display delivers at-a-glance system diagnostics, while the USB-A and USB-C ports allow convenient charging for portable electronics. The hot-swappable, user-replaceable batteries reduce downtime and simplify maintenance, and the free Vertiv Power Assist software enables seamless shutdown of devices, preserving data and hardware integrity. This unit also has a dedicated mute button for quickly silencing alarms, as well as dataline surge protection to safeguard your equipment from power surges traveling through network cables.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- Comes with a full-unit and battery coverage with an advanced replacement warranty for three years
- Technical Information
- AVR
- Yes
- Receptacle Type
- USB Type A
- USB Type C
- IEC
- Receptacle Detail
- 6 x IEC
- Number of Battery & Surge Outlets
- 6
- Number of Surge-only Outlets
- 0
- Protection Type
- Over Current
- Short Circuit
- Over Charge
- Cord Length
- 1.80 m
- Transfer Time
- 6 ms
- Efficiency Detail
- 95% (Full Load Mode)
- Application/Usage
- Desktop Computer
- Personal Electronic
- Entertainment
- Surveillance System
- Retail
- Equipment
- Surge Suppression
- Yes
- Power Description
- Load Capacity (VA)
- 1 kVA
- Load Capacity (Watt)
- 625 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 220 V AC - 240 V AC
- 140 V AC - 290 V AC
- Input Current
- 5.30 A
- Output Voltage
- 230 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Simulated Sine Wave
- Surge Energy Rating
- 600 J
- Circuit Breaker
- Yes
- Display & Graphics
- Display
- LCD
- Controls/Indicators
- Status Indicators
LCD Display:
- Load Levels
- Alerts
- Estimated Runtime
- Battery Information
- Battery Chemistry
- Sealed Lead Acid (VRLA)
- Backup/Run Time (Full Load)
- 2 Minute
- Backup/Run Time (Half Load)
- 11 Minute
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 40°C
- Maximum Operating Elevation
- 3.05 km
- Maximum Storage Elevation
- 3.05 km
- Sound Emission (A-Weighted)
- 40 dB(A)
- Physical Characteristics
- Height
- 290 mm
- Width
- 120 mm
- Depth
- 430 mm
- Form Factor
- Compact
- Weight (Approximate)
- 9.80 kg
- Miscellaneous
- Certifications & Standards
- CB
- CE
- EN/IEC 62040-1
- UKCA
- RCM
- EAC
- EN/IEC 62040-2
- EN/IEC 61000-3-2
- EN 61000-3-3
- CAT: C1
- IEC 61000-4-5
- ISTA Procedure 3A
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
