Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.
Benefits
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Basic
- Plug/Connector Type
- IEC 60309 2P+E
- Plug/Connector Detail
- 1 x IEC 60309 2P+E
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 10 x U-Lock IEC 60320 C13
- 2 x U-Lock IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 230 V AC
- Power Rating (Watt)
- 3.60 kW
- Input Current
- 16 A
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Cabinet-mountable
- Width
- 51 mm
- Depth
- 51 mm
- Length
- 978 mm
- Miscellaneous
- Package Contents

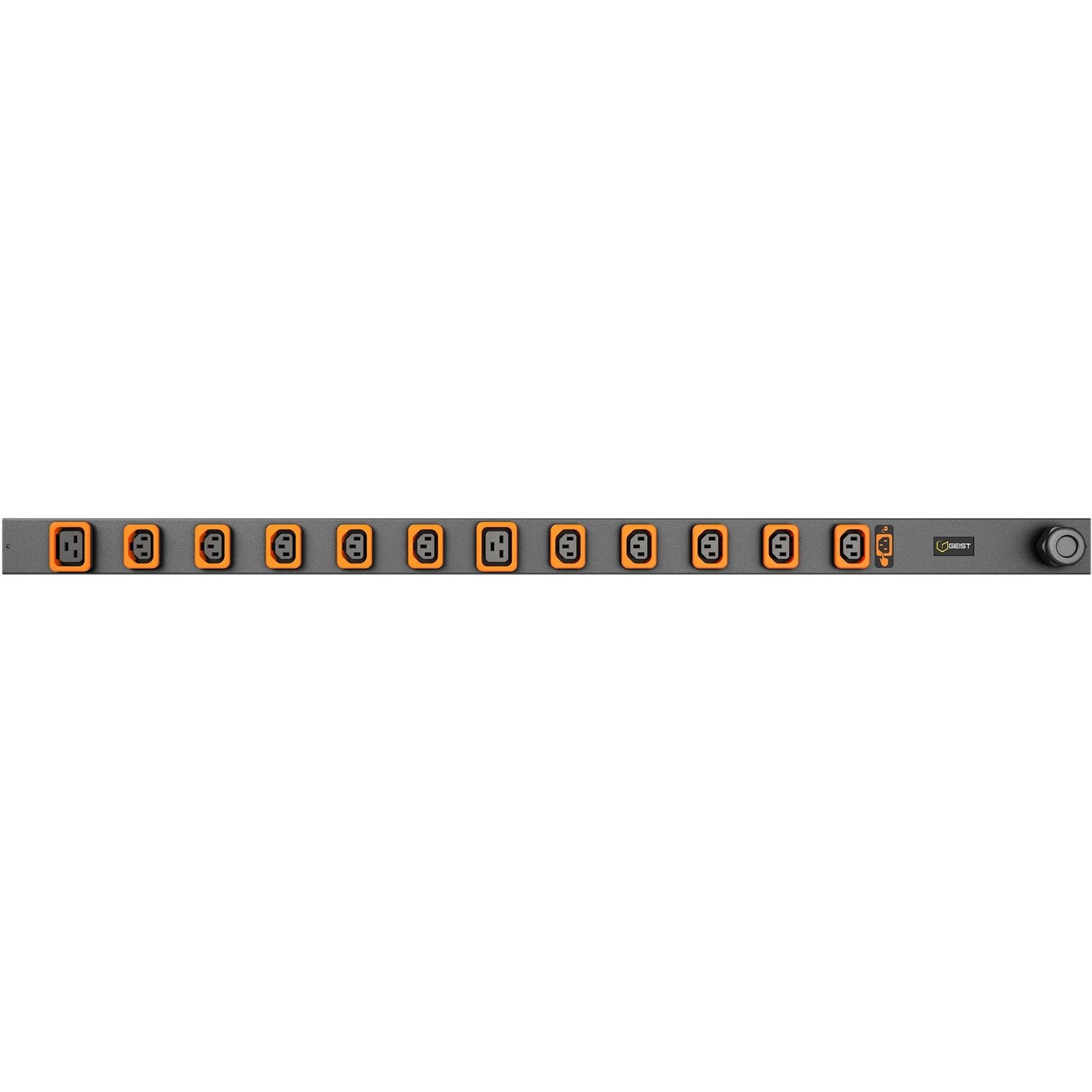

- rPDU GVHVAN122-102P02PS6-IP44 12-Outlets PDU
- Vertical Mounting Bracket Kit
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
