- General Information
- Manufacturer
- Veracity USA, Inc
- Manufacturer Website Address
- http://www.veracityusa.com
- Brand Name
- Veracity
- Product Line
- OUTBREAK
- Product Type
- PoE Splitter

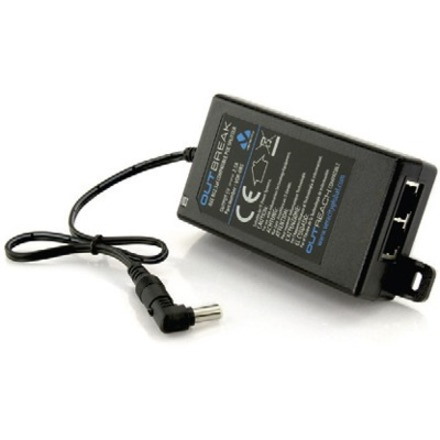

POE splitter for 12V IP cameras and other devices
Veracity's OUTBREAK lets you upgrade network equipment such as IP cameras to be fully POE compatible.
Simply connect OUTBREAK in line with the IP camera's network connection, and wire its DC output to the camera's power input. The camera can then connect to the network while OUTBREAK converts Power over Ethernet to the lower-voltage supply it requires.
- Technical Information
- Protection Type
- Short Circuit
- Power Description
- Input Voltage
- 36 V DC
- 56 V DC
- Maximum Output Voltage
- 5 V DC
- Maximum Input Current
- 600 mA
- Maximum Output Current
- 2.20 A
- Maximum Output Power
- 12.50 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x 10/100/1000Base-T
- Physical Characteristics
- Height
- 28 mm
- Width
- 56 mm
- Length
- 100 mm
- Weight (Approximate)
- 200 g
- Miscellaneous
- Compatibility
- IP Surveillance Cameras
- Access Control Panels
- Wireless Access Points (Wifi, Bluetooth etc)
- VoIP Telephones
- Certifications & Standards
- CE
- FCC
- IEEE 802.3af
- Environmentally Friendly
- Yes
- NDAA Compliant
- Yes
