- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperWorkstation
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
- Supermicro provides a three-year warranty for labor and one-year warranty for parts.
- Processor
- Number of Processors Supported
- 1
- Processor Supported
- Xeon
- Pentium
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C262
- Memory
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 4
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- PCI Express NVMe
- Supported Storage Drive Types
- HDD
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 6
- Number of External 5.25" Bays
- 2
- Number of 3.5" Bays
- 4
- Total Number of Expansion Slots
- 4
- Number of PCI Express x4 Slots
- 2
- Number of PCI Express x8 Slots
- 2
- Number of M.2 Interfaces
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.2 Gen 1 Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 3
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 400 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Mini-tower
- Height
- 362 mm
- Width
- 184.2 mm
- Depth
- 425.5 mm
- Weight (Approximate)
- 7.26 kg
- Miscellaneous
- Package Contents

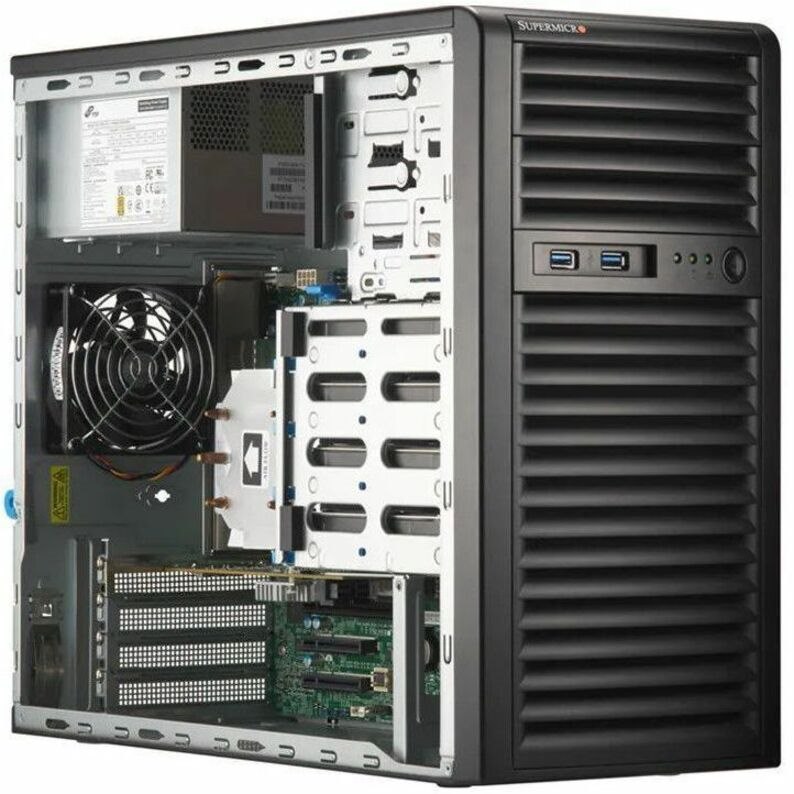

- SuperWorkstation SYS-531R-I
- 1 x Super X13SCL-F Motherboard
- 1 x Mini-Tower Chassis
- 4 x 7pin SATA (STR to STR), 57.5cm, Flat, PBF
- 1 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
- 1 x 16PIN FRONT CTRL SPLIT CONVECTOR 6" ,PB FREE
- 1 x 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
- 1 x STD I/O shield for X9 socket R server MB with Gasket.
- 2 x Binding Head Screw (with teeth) #632*4.5L
- 1 x License key for enabling OOB BIOS management
- 1 x M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
- 1 x PS2 400W Multi-output High Efficiency 80PLUS Gold Power
- 1 x 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
- 4 x SC731 Tool-less Internal 3.5inch HDD Tray
- 1 x 70cm SATA Cable S-S 30AWG
- 1 x Y SPLIT SATA POWER ADAPTER, PB FREE
- 1 x BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
- 1 x 80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan
- 1 x 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
- 1 x High Performance CPU Heatsink for LGA1700
- 1 x SAS3/SATA mobile rack for 4x 2.5" drives
