- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperWorkstation
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
- Supermicro provides a three-year warranty for labor and one-year warranty for parts.
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-4677
- Processor Supported
- Xeon
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- W790
- Memory
- Maximum Memory Supported
- 1 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 8.0
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- PCI Express NVMe
- Supported Storage Drive Types
- HDD
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 6
- Number of External 5.25" Bays
- 2
- Number of 3.5" Bays
- 4
- Total Number of Expansion Slots
- 4
- Number of PCI Express x4 Slots
- 1
- Number of PCI Express x16 Slots
- 3
- Number of M.2 Interfaces
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 3.2 Gen 1 Ports
- 2
- Number of USB 3.2 Gen 2 Ports
- 4
- USB Type-C (Front)
- Yes
- USB Type-C (Rear)
- Yes
- USB Type-C Detail
- 2 x USB 3.2 Gen2 Type-C ports
- Number of Serial Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 1.20 kW
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Mid-tower
- Height
- 424.2 mm
- Width
- 193 mm
- Depth
- 525.3 mm
- Weight (Approximate)
- 12.25 kg
- Miscellaneous
- Package Contents

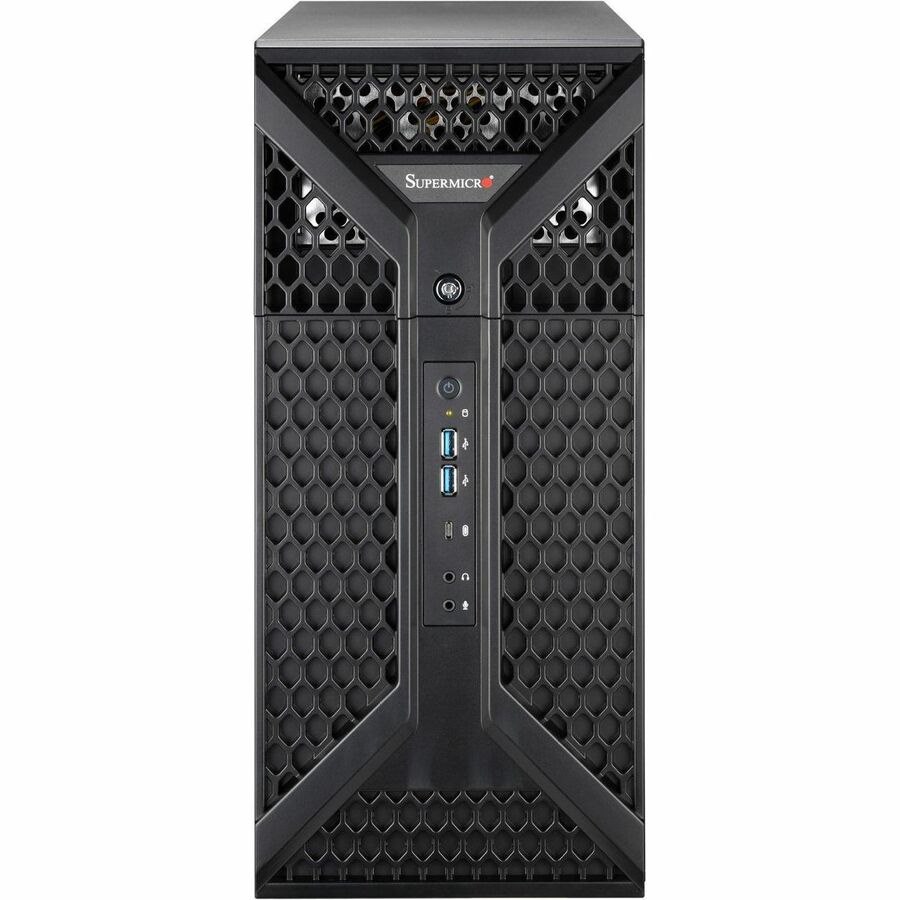

- SuperWorkstation SYS-531A-I
- 1 x Super X13SRA-TF Motherboard
- 1 x Mid-Tower Chassis
- 6 x 7pin SATA (STR to STR), 57.5cm, Flat, PBF
- 2 x Y SPLIT SATA POWER ADAPTER, PB FREE
- 1 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
- 1 x USB3.0 Internal Cable-60cm(19pin Female to 19pin Female)
- 1 x Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
- 1 x NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
- 1 x [NR] USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u" ,RoHS
- 1 x USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS
- 1 x STD I/O Shield for X13SRA-TF with EMI Gasket & Black Mylar
- 1 x License key for enabling OOB BIOS management
- 2 x M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type
- 1 x 1000W/1200W PS2 Multi output power supply with modular cable
- 2 x 120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732
- 1 x Front control board for CSE735,RoHS
- 1 x CSE-735D4 front brezel assembly - Black
- 1 x 735 front control I/O bezel
