- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type

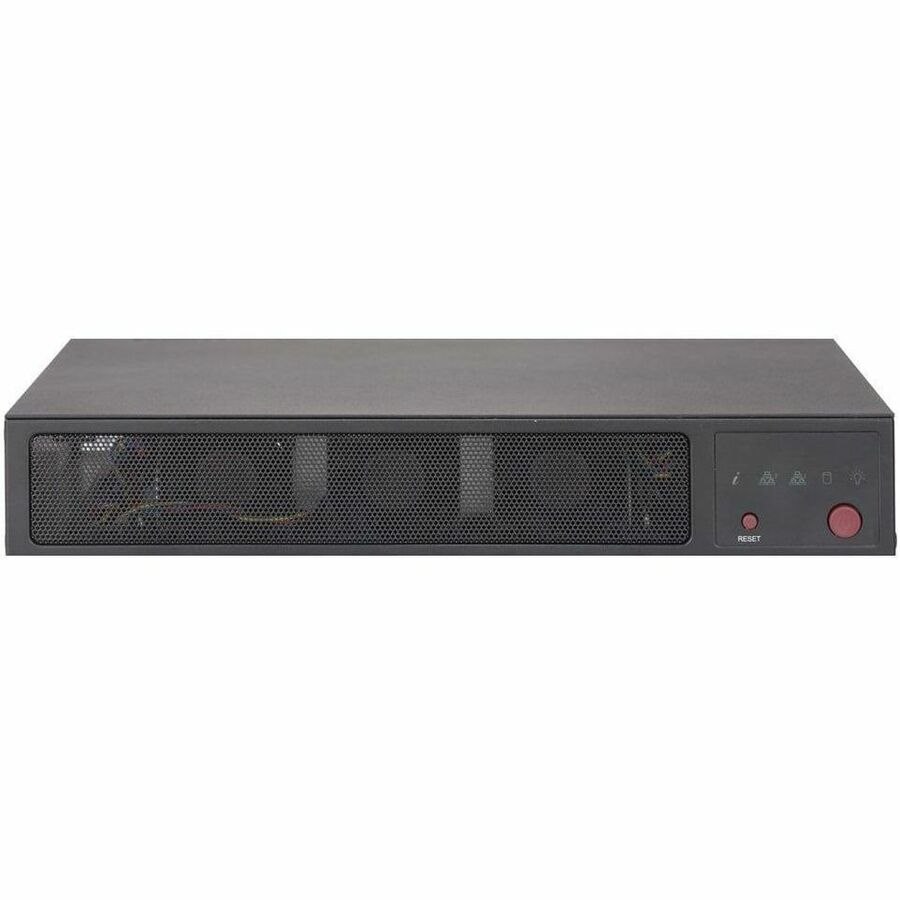

- Server Barebone System
Embedded SuperServers
Optimized for a wide variety of applications and environments
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
Supermicro provides a three-year warranty for labor and one-year warranty for parts. This limited warranty includes advance part replacement service covering a period of 1 year from Supermicro invoice date.
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Supported
- Core i9
- Core i7
- Core i5
- Core i3
- Pentium
- Celeron
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q670E
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 2.0
- Storage
- Supported Storage Drive Interfaces
- Serial ATA
- PCI Express 4.0 x4
- Supported Storage Drive Types
- HDD
- Controllers
- Controller Type
- Serial ATA
- NVMe
- Network & Communication
- Ethernet Technology
- 25 Gigabit Ethernet
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Total Number of Expansion Slots
- 1.0
- Number of PCI Express x16 Slots
- 1
- Number of M.2 Interfaces
- 1
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 4
- Number of USB 3.2 Gen 2 Type-A Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- DisplayPort
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 180 W
- Frequency
- 47 Hz
- 63 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Mini PC
- Rack Height
- 1U
- Height
- 42.9 mm
- Width
- 264.9 mm
- Depth
- 225.8 mm
- Weight (Approximate)
- 1.68 kg
- Miscellaneous
- Package Contents
- Mini-1U Embedded System with Intel Ice Lake-D CPU up to 10 cores Super Server
- 1 x Super X13SAV-LVDS Motherboard
- 1 x Fan-based Embedded Chassis
- 1 x 7pin SATA (STR to STR), 21cm, PBF
- 1 x PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, 22AWG
- 3 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
- 1 x 180W DC power adapter with US power cord 18AWG 6ft
- 1 x 1U E300, 101F I/O Shield for X13SAV-LVDS with EMI Gasket
- 1 x E300-13AD Quick Reference Guide
- 1 x 1U Active CPU Heat Sink for E300-13C Embedded Server
