- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 1 Year
- Processor
- Number of Nodes
- 3
- Number of Processors Supported
- 1
- Processor Socket
- Socket LGA-4677
- Processor Supported
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
- Memory
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 8.0
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Total Number of Expansion Slots
- 3.0
- Number of PCI Express x16 Slots
- 3
- Number of M.2 Interfaces
- 2
- Power Description
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 2 kW
- Physical Characteristics
- Color Family
- Silver
- Product Color
- Silver
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 88.9 mm
- Width
- 449.6 mm
- Depth
- 429.3 mm
- Weight (Approximate)
- 24.99 kg
- Miscellaneous
- Package Contents

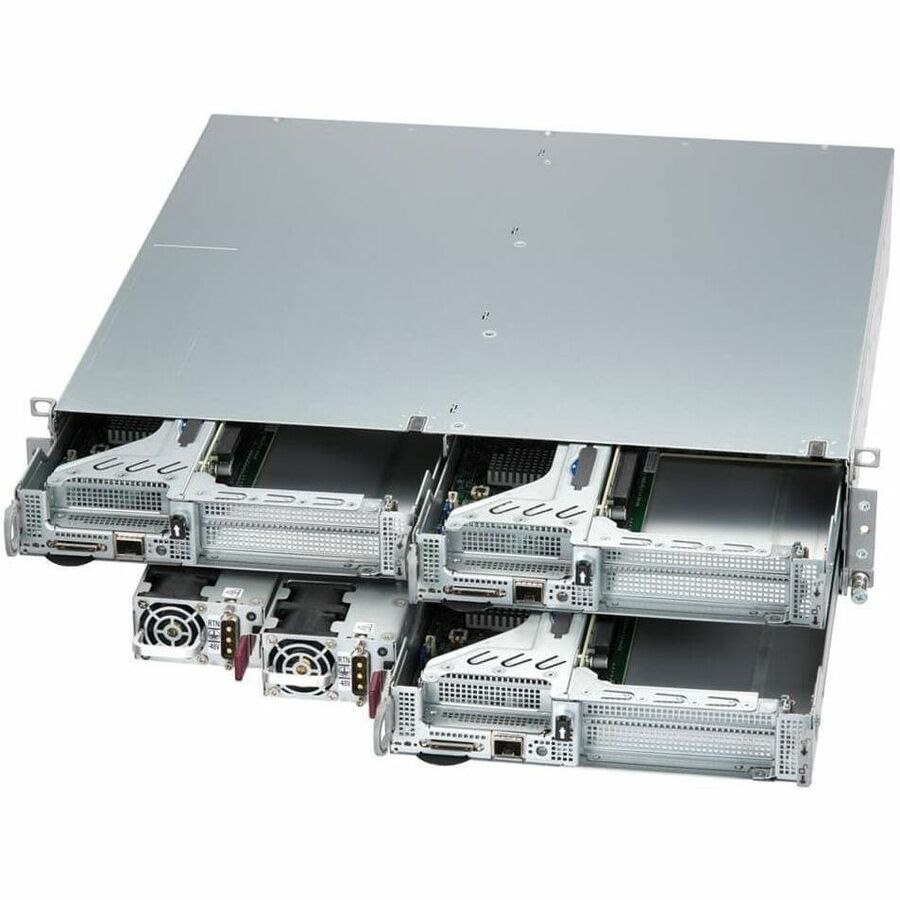

- IoT SuperServer SYS-211SE-31DS
- 3 x Super X13SEED-SF Motherboard
- 1 x 2U Chassis
- 1 x Backplane for SuperEdge 2U3N,RoHS
- 3 x 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
- 2 x 48VDC input power cable for PWS-2K03D-1R, 4M, 8AWG,RoHS
- 3 x 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
- 3 x 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,Ro
- 3 x License key for enabling OOB BIOS management
- 3 x 1U Prop. Passive HS for Intel B13 Blade Series
- 2 x 2000W 1U -48Vdc single output Redundancy power supply
- 2 x Super Edge pass through board support Ultra powers up to 6KW
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
