- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.co.uk
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Processor
- Number of Processors Installed
- 2
- Processor Socket
- Socket LGA-4677
- Processor Supported
- Xeon Bronze
- Xeon Silver
- Xeon Gold
- Xeon Platinum
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
- Memory
- Maximum Memory Supported
- 8 TB
- Memory Technology
- DDR5 SDRAM
- Memory Standard
- DDR5-4800/PC5-38400
- Total Number of Memory Slots
- 32
- Storage
- Supported Storage Drive Interfaces
- Serial ATA
- PCI Express
- Controllers
- Controller Type
- Serial ATA
- I/O Expansions
- Number of Total Expansion Bays
- 19
- Total Number of Expansion Slots
- 12
- Number of PCI Express x16 Slots
- 12
- Number of M.2 Interfaces
- 2
- Interfaces/Ports
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 230 V AC
- Number of Power Supplies Installed
- 6
- Maximum Power Supply Wattage
- 3 kW
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Dual Colour
- Product Color
- Black
- Silver
- Form Factor
- Rack-mountable
- Rack Height
- 8U
- Height
- 355.6 mm
- Width
- 436.9 mm
- Depth
- 843.3 mm
- Weight (Approximate)
- 75.30 kg
- Miscellaneous
- Compatibility

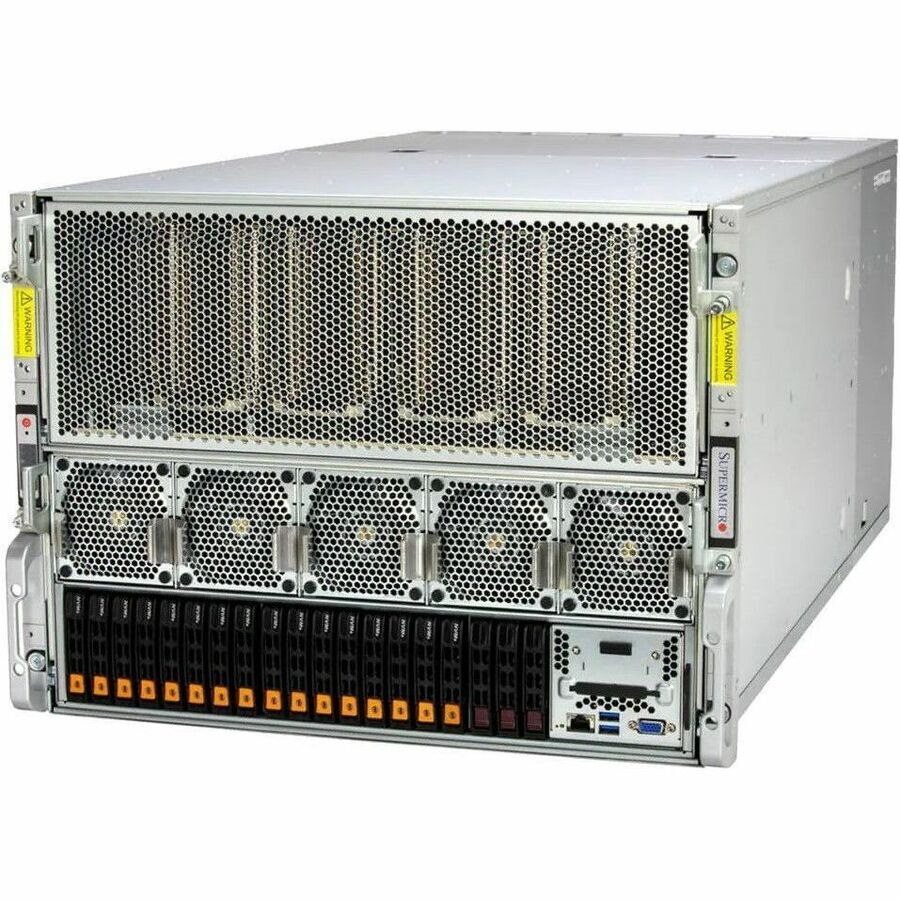

- SuperServer 821GE-TNHR Barebone System
- 1 x Super X13DEG-OAD Motherboard
- 1 x 8U Chassis
- 2 x FAN board with 5 FAN connectors and 4 2x4 power connect
- 1 x IO board for Delta-Next GPU system,RoHS
- 1 x NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst
- 1 x NIC adaptor board with PLX switch for Delta-Next GPU sys
- 1 x Delta Next IO module, VGA, RJ45 LAN, USB3.0, COM, UID,Ro
- 1 x NIC card carrier board for Delta-Next GPU system,RoHS
- 1 x PCIE Gen5 switch board for 4U 8 SXM5 GPU system,RoHS
- 1 x Midplane for 8U Delta-Next GPU system SYS-821GE-TNHR (chassis CSE-GP801).,RoHS
- 1 x NVMe Gen5 24-slot direct-attached backplane, support NVMe Gen5/SAS4/SAS3/SATA HDD/SSDs.,RoHS
- 2 x Power distribution board (extension board) used in Habana Gaudi2 GPU system,RoHS
- 6 x BLADE PWS POWER CORD C-19 TO C-20, PBF
- 2 x PicoBlade 1.25, 1x4 to 1x4,SB,45cm,3x 26AWG,RoHS
- 8 x MCIO x8 (STR to STR),55CM,30AWG,RoHS
- 4 x MCIOx8/ STR to MCIOx8/ STR, 65cm,30AWG,RoHS
- 2 x MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
- 1 x MicroHi(2x4 to 2x4),PH3.0,60cm,7.5A/p,18AWG,PUR/BLK,RoHS
- 1 x Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R
- 1 x Slimline x8 (STR) to Slimline x8 (STR),65CM,85 OHM,RoHS
- 1 x Slimline x4 (STR) to Slimline x4 (STR),INT,85CM,100 OHM,
- 1 x MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
- 5 x 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for GP801,Ro
- 5 x 80x80x80mm, 48V 14.6K/12.2K RPM Counter-rotator, rear fan, c
- 6 x AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
- 2 x 8080 FAN module use with PWS-3K06G-2R
- 1 x License key for enabling OOB BIOS management
- 2 x 4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
- 2 x AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
- 5 x Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
- 1 x GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS
- 1 x NIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHS
- 4 x MCIO x8 (STR to STR),55CM,30AWG,RoHS
- 1 x MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
- 1 x NIC adaptor board with PLX switch for Delta-Next GPU system,RoHS
