- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Charging Station

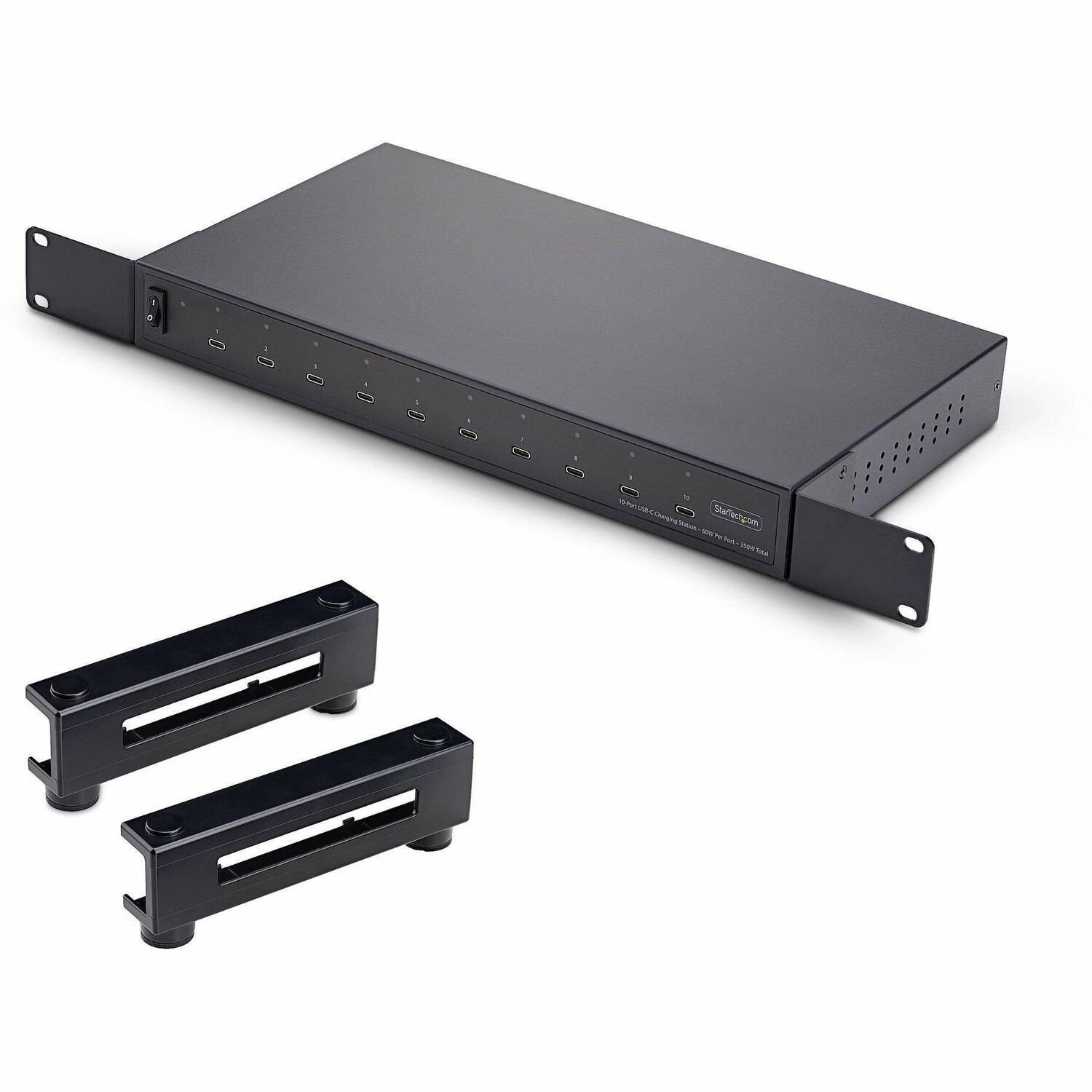

The 10-Port USB-C Charging Hub delivers fast, efficient charging for laptops, tablets, and mobile devices, making it ideal for offices, classrooms, and IT labs.
Smart Power Distribution
Each of the 10 USB-C ports provides up to 60W, with a total output of 350W that dynamically adjusts in real time to meet varying device needs. Its smart power allocation technology prioritizes active ports requiring higher output while reducing power to idle ports, and supports PPS (3.3-21V?3.0A) for safe, rapid USB-C charging.
Flexible Mounting & Scalable Design
Designed for flexibility, the hub includes rack-mounting ears for 19-inch server racks as well as rubber-gripped feet for secure desktop use. Its stackable design allows multiple units to be layered neatly, expanding charging capacity without adding clutter.
Active Cooling & Safety Compliance
A built-in fan ensures active cooling during continuous, high-load operation, while charging status LEDs on each port provide at a glance visual charging status. The charging hub is TUV SUD certified and compliant with USB-IF, FCC, and CE standards, and includes overcurrent and short-circuit protection.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Device Supported
- Mobile Device
- Notebook
- Tablet PC
- Universal Adapter
- Yes
- Cable Length
- 1.83 m
- Features
- LED Indicator
- Overcurrent Protection
- Short Circuit Protection
- Cables Included Detail
- 1 - 6ft (1.8m) CEE 7/7 to IEC-C13 Power Cord (EU)
- Interfaces Detail
1 - IEC 60320 C13 Power
- Output Connectors Detail
- 10 - USB Type-C (24 pin) USB Power Delivery Only
- Interfaces/Ports
- USB Type-C
- Yes
- Number of USB Type-C Ports
- 10
- USB Power Delivery
- 10 x Type-C 60W
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage
- 5 V DC
- 9 V DC
- 12 V DC
- 15 V DC
- 20 V DC
- Output Voltage Detail
- 5 V @ 3 A
- 9 V @ 3 A
- 12 V @ 3 A
- 15 V @ 3 A
- 20 V @ 3 A
- Maximum Output Power
- 350 W
- Maximum Input Current
- 10 A
- Maximum Output Current
- 3 A
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Minimum Storage Temperature
- -20°C
- Maximum Storage Temperature
- 60°C
- Miscellaneous
- Package Contents
- 350W Charging Station
- 2 x 19" Rack Mounting Ears
- 6 x Mounting Ear Screws
- 4 x M5x12mm Rack Screw
- 4 x M5 Cage Nuts
- 2 x Plastic Snap-On Feet with Rubber Grips
- 1 x 6ft (1.8m) CEE 7/7 to IEC-C13 Power Cord (EU)
- 1 x Quick-Start Guide
- Compatibility
- TUV SUD
- USB-IF
- FCC
- CE
- TAA Compliant
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
