- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- IRG5410
- Product Type
- Modem/Wireless Router

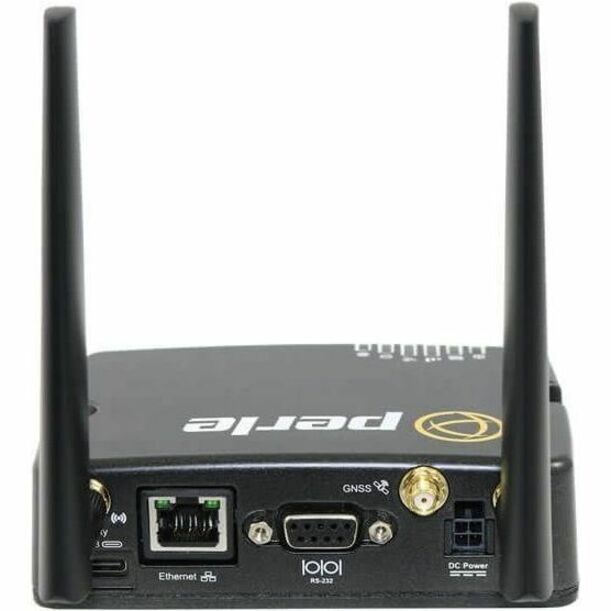

Perle IRG5410 LTE Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots, are easily deployed with no need for training because of the intuitive web GUI. For advanced admin scrips, CLI commands are also available.
Perle IRG5410 LTE Routers provide fast and reliable network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG5410 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.
- Building and process automation controllers, Internet of Things (IoT)
- Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
- SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
- Digital signage, ATMs, POS, Kiosks, Temporary "pop-up" stores
- Video surveillance, Mobile hotspots
- Fleet management, GPS/GNSS Location tracking, Taxis, vehicle area networking (VAN)
- Transit systems, Buses, Metro Subways, Railways
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.20 GHz
- Memory Technology
- DDR4 SDRAM
- Standard Memory
- 1 GB
- Wireless Specifications
- Broadband Transmission Technology
- Ethernet
- Cellular
- Cellular Generation
- 4G
- Cellular Network Supported
- LTE 1900
- LTE 2100
- LTE 1800
- LTE 850
- LTE 700
- LTE 900
- LTE 2600
- LTE 800
- LTE 2300
- HSPA 2100
- HSPA 1900
- HSPA 850
- HSPA 900
- WCDMA 2100
- WCDMA 1900
- WCDMA 1800
- WCDMA 850
- WCDMA 900
- UMTS 2100
- UMTS 1900
- UMTS 1800
- UMTS 850
- UMTS 900
- HSPA 1800
- Cellular Data Connectivity Technology
- LTE
- HSPA+
- HSPA
- UMTS
- WCDMA
- LTE Advanced
- LTE Cat 6
- DC-HSPA+
- Encryption Standard
- 3DES
- AES-CBC
- CAST
- MD5
- TLS
- SSL
- TLS 1.1
- TLS 1.2
- AES-CTR
- Firewall Type
- NAT
- Interfaces/Ports
- Total Number of Network Ports
- 1
- USB
- Yes
- Number of Broadband (RJ-45) Ports
- 1
- USB Standard
- USB 3.2 Type C
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- VPN Supported
- Yes
- Multi-SIM Supported
- Yes
- Number of SIM Card Supported
- 2
- SIM Size Supported
- Mini
- Storage
- Flash Memory Capacity
- 4 GB
- Storage Media
- MultiMediaCard (MMC)
- Physical Characteristics
- Product Material
- Die-cast Aluminum
- Form Factor
- Desktop
- Panel-mountable
- Wall Mountable
- DIN Rail Mountable
- Height
- 34 mm
- Width
- 120 mm
- Depth
- 85 mm
- Weight (Approximate)
- 350 g
- Miscellaneous
- Package Contents
- IRG5410 Modem/Wireless Router
- Power Supply
- LTE Antennas
- Certifications & Standards
- SAE J1455
- MIL-STD-810G
- EN 61373
- E-Mark
- FCC/ICES
- RED
- PTCRB/CTIA
- CE
- EN 50155: 2017 Clause 4.3.6
- EN 50121-1: 2017
- EN 50121-3-2: 2016
- EN 50121-4: 2016
- IEC 60571:2012 For Clause 12.2.8 & 12.2.9
- IEC 62236-1: 2018
- IEC 62236-3-2: 2008
- IEC 62236-4: 2018
- FCC 47 Part 15 Subpart B, Class B
- ICES-003 Issue 6 Class B (Canada)
- FCC Part 15.247 Subpart C ( 2.4 Ghz)
- FCC Part 15.407 Subpart E ( 5 Ghz)
- ANSI C63.4 Class B
- EN61000-3-2: 2014
- EN61000-3-3: 2013
- CISPR 32:2015/EN 55032:2015 Class B
- CISPR 25:2016/EN55025
- CISPR 35:2016/EN 55035:2017
- EN 61000-4-2:2009
- EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
- EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
- EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
- EN 61000-4-6: 2013 (CS)
- EN 61000-4-8: 2009 (PFMF)
- EN 61000-4-9: 2016 (PMF)
- EN 61000-4-11: 2004 + A1:2017
- EN 61000-4-16
https://www.perle.com/products/routers-gateways/irg5410-cellular-lte-routers.shtml
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
