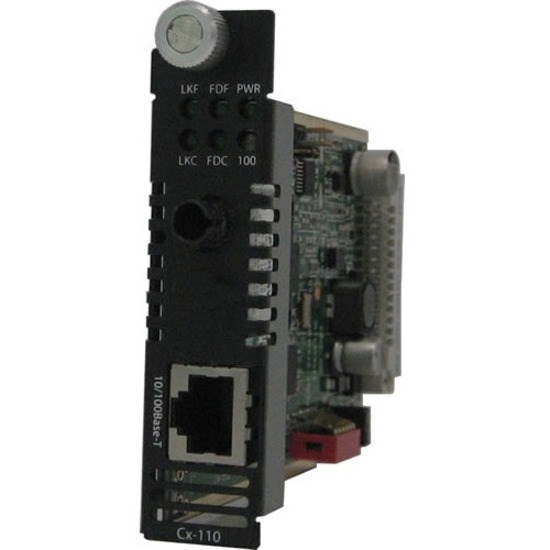

Perle CM-110-M1ST2D Transceiver/Media Converter

  • Part: 1377927
  • Model: 05042840
£313.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Perle Systems, Inc
    • Manufacturer Website Address
    • http://www.perle.com
    • Brand Name
    • Perle
    • Product Type
    • Transceiver/Media Converter

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich Managed 10/100 Rate Converting to Fiber Media Converters transparently connect 10/100 Ethernet to fiber. Our 10/100 converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Remote Loopback. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's Managed 10/100 Ethernet media converter modules the smart choice for IT professionals.

For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.

  • Interfaces/Ports
    • Total Number of Ports
    • 2
    • Network (RJ-45)
    • Yes
    • DVI
    • No
    • USB
    • No
    • Management Port
    • No
    • Number of Network (RJ-45) Ports
    • 1
    • Number of ST Ports
    • 1
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Twisted Pair
    • Fiber Mode Supported
    • Multi-mode
    • Fiber Optic Cable Wavelength
    • 1310 nm
    • 1550 nm
    • Maximum Distance Supported
    • 2 km
    • Fiber Optic Cable Core/Cladding Specification
    • 62.5/125 µm
    • 50/125 µm
    • 85/125 µm
    • 100/140 µm
  • Network & Communication
    • Ethernet Technology
    • Fast Ethernet
    • Network Technology
    • 10/100Base-T
    • 100Base-BX-D
  • Physical Characteristics
    • Form Factor
    • Internal
    • Weight (Approximate)
    • 150 g
