- General Information
- Manufacturer
- Newland
- Manufacturer Website Address
- http://www.newland-id.com
- Brand Name
- Newland
- Product Type
- Barcode Scanner

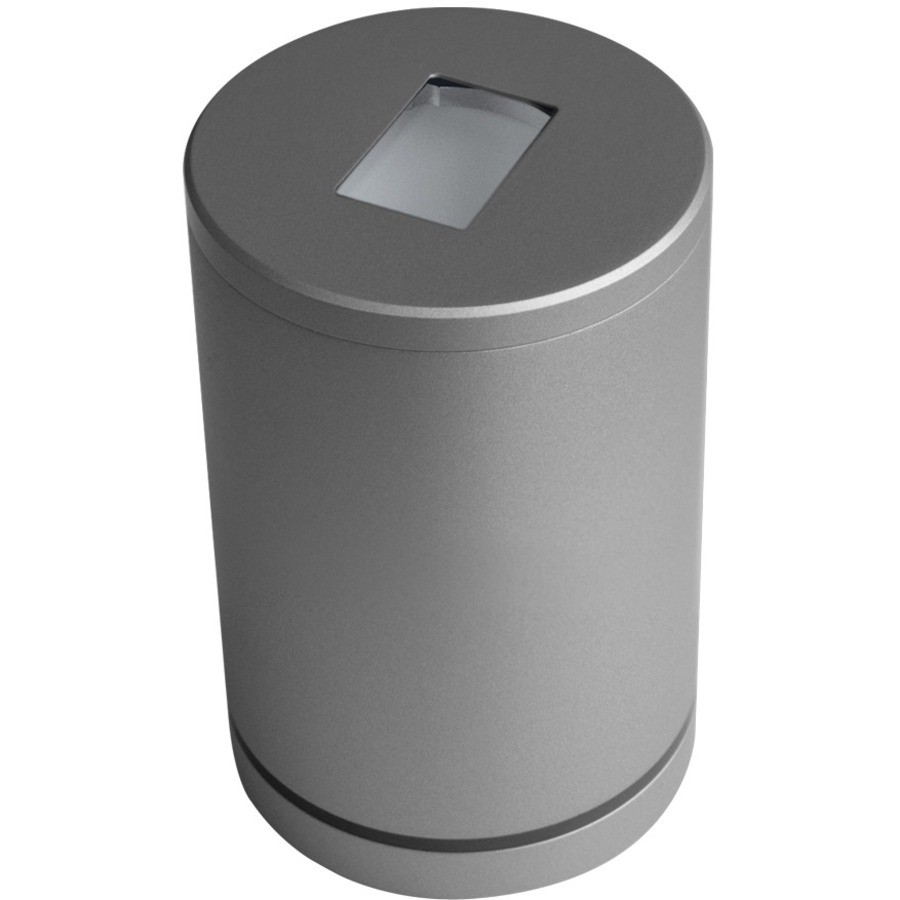

Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.
A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.
- Technical Information
- Scanning Capability
- 2D
- 1D
- Barcode Symbology Supported
- 1D:
- EAN-13
- EAN-8
- UPC-A
- UPC-E
- ISSN
- ISBN
- Code 128
- Code 39
- Codabar
- UCC/EAN 128
- AIM128
- Interleaved 2 of S I
- TF-14
- ITF-6
- Standard 2 of 5
- Matrix 2 of 5
- COOP 25
- Industrial 2 of 5
- Plessey
- MSI Plessey
- Code 11
- Code 93
- ISBT12
- Deutsche 14
- Deutsche12
- QR Code
- Data Matrix
- Image Sensor Type
- CMOS
- Depth of Field
- Data Matrix (10mil) 0-25mm
- QR (15mil) 0-30mm
- Scanning Distance
- 30 mm
- Cable Type Included
- USB
- Field of View (Horizontal)
- 33°
- Field of View (Vertical)
- 21°
- Reading Angle (Skew)
- 45°
- Reading Angle (Pitch)
- 45°
- Reading Angle (Roll)
- 360°
- Drop Specification
- 1.2
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (DataMatrix)
- 0.25 mm
- Direct Part Marking (DPM) Decoding
- Yes
- Image Sensor Resolution
- 1280 x 800
- Illumination Type
- LED
- Illumination Color
- Blue
- Interfaces/Ports
- Host Interface
- USB
- Power Description
- Maximum Operating Power Consumption
- 1.15 W
- Input Current
- 330 mA
- Environmental Conditions
- Operating Temperature
- -20°C to 60°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Height
- 100 mm
- Weight (Approximate)
- 347 g
- Miscellaneous
- Package Contents
- NVF260 Barcode Scanner
- 1.2 Mtr. direct USB cable.
- Ingress Protection (IP) Rating
- IP64
- Application/Usage
- Healthcare
- Industrial
- Manufacturing
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
