- General Information
- Manufacturer
- Netgear, Inc
- Manufacturer Website Address
- http://www.netgear.co.uk
- Brand Name
- Netgear
- Product Line
- AV Line
- Product Series
- M4250
- Product Type
- Ethernet Switch
Switching Engineered for AV over IP
Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs.
PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Energy Efficient
- DHCP Snooping
- Dynamic ARP Inspection
- Scripting
- Strict Priority Queuing (SPQ)
- Access Control List
- DHCP Relay
- Plug and Play
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+ RJ-45 Network Port
- 2 x Gigabit Ethernet RJ-45 Network Port
- 4 x 10 Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- 1000Base-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1as
- IEEE 802.1Qav
- IEEE 802.1Qat
- IEEE 802.1ak
- IEEE 802.3az
- IEEE 802.3ad
- IEEE 802.1AX
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1BA
- IEEE 802.1x
- IEEE 802.3x
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.3ac
- IEEE 802.3ae
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 300 W
- Power Source
- Power Supply
- Number of Power Supplies Installed
- 1
- Power Consumption
- 401 W
- Plug/Connector Type
- C14
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Table Top
- Height
- 43.2 mm
- Width
- 440 mm
- Depth
- 257 mm
- Weight (Approximate)
- 4.30 kg
- Miscellaneous
- Package Contents

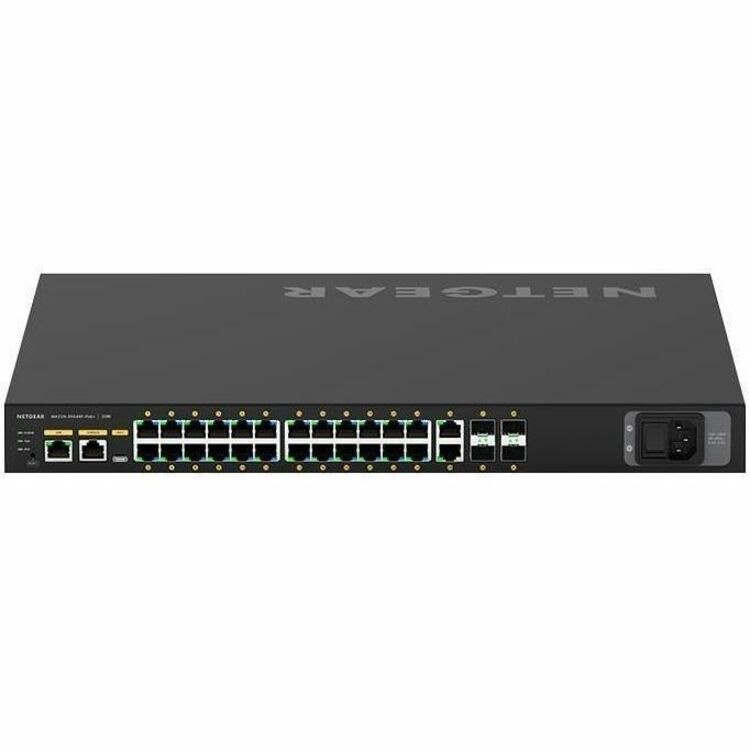

- AV Line M4250-26G4F-PoE+ Ethernet Switch
- Power Cord(s)
- RJ45 Straight-through Wiring Serial Console Cable to DB9
- USB Type-C to USB-A 2.0 Console Cable
- Rubber Caps for the SFP/SFP+ Sockets
- Rubber Footpads for Tabletop Installation
- Installation Guide
- 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack
- 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
- Application/Usage
- Network
- Enterprise
- Campus
- IoT Devices
- Security
- Router
