- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/uk/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR630 V4
- Marketing Information

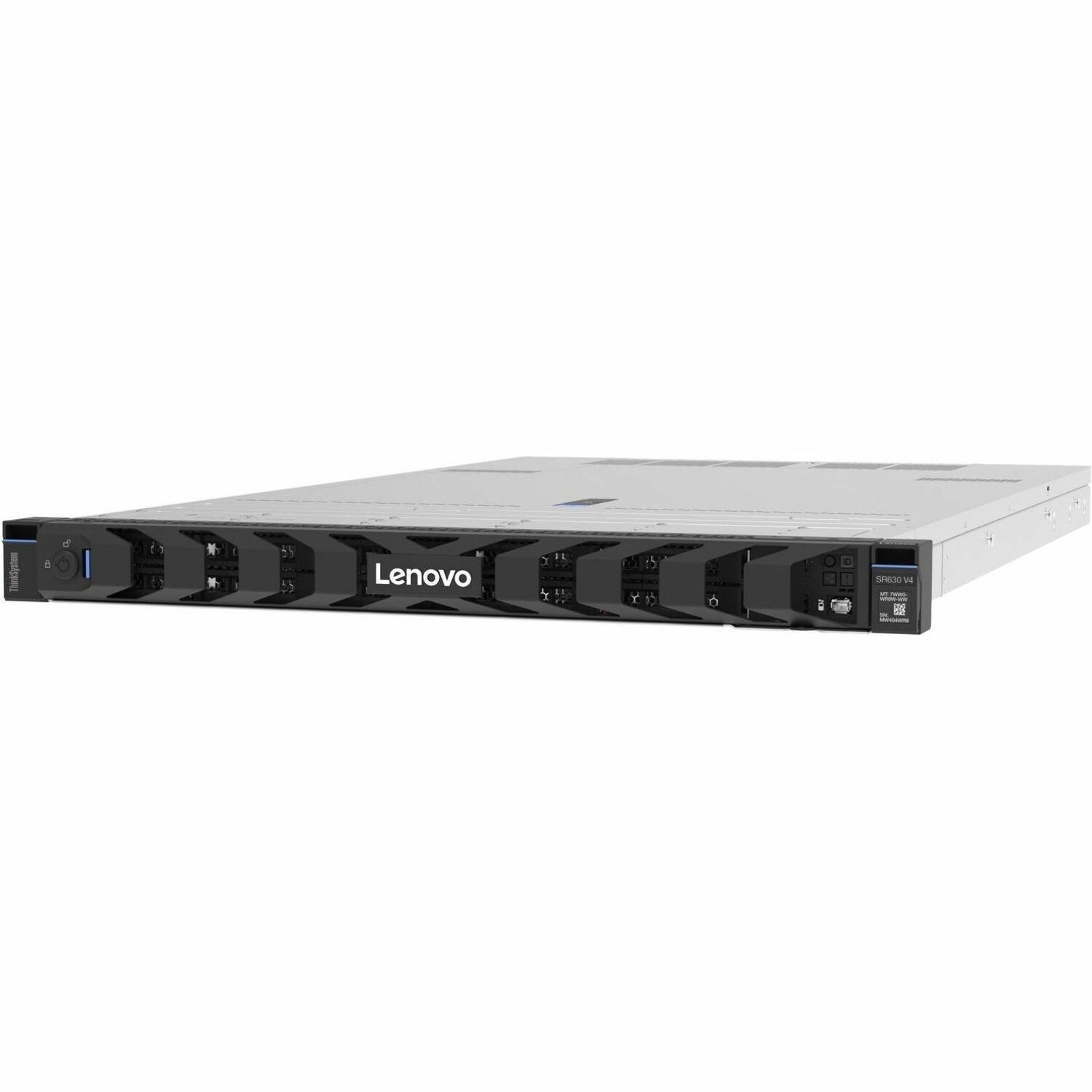

The Lenovo ThinkSystem SR630 V4 is an ideal 2-socket 1U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR630 V4 is designed for high density and scale-out workloads in various customer segments.
- Product Type
- Server
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon
- Processor Model
- 6505P
- Processor Core
- Dodeca-core (12 Core)
- Processor Speed
- 2.20 GHz
- Cache
- 48 MB
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Standard Memory
- 32 GB
- Maximum Memory Supported
- 8 TB
- Memory Technology
- TruDDR5
- Memory Clock Speed
- 6.40 GHz
- Error Checking
- ECC
- Total Number of Memory Slots
- 32
- Number of Occupied Memory Slots
- 1
- Signal Processing
- Registered (Buffered)
- Controllers
- Controller Type
- NVMe
- RAID Supported
- Yes
- I/O Expansions
- Hot Swappable Bays
- Yes
- Display & Graphics
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2600
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.0 Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- VGA
- Yes
- Number of VGA Ports
- 1
- Remote Management
- Yes
- Remote Management Controller
- XClarity Controller 3 (XCC3) Premier
- Operating System
- Operating System Supported
- Windows Server 2022
- Windows Server 2025
- Red Hat Enterprise Linux 9.4
- Red Hat Enterprise Linux 9.5
- Red Hat Enterprise Linux 9.6
- Red Hat Enterprise Linux 9.7
- Red Hat Enterprise Linux 10
- Red Hat Enterprise Linux 10.1
- SUSE Linux Enterprise Server 15 SP6
- SUSE Linux Enterprise Server 15 SP7
- SUSE Linux Enterprise Server 16
- Ubuntu 22.04 LTS x64
- Ubuntu 24.04 LTS x64
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C13
- Maximum Power Supply Wattage
- 1.30 kW
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 43 mm
- Width
- 440 mm
- Depth
- 788 mm
- Weight (Approximate)
- 18.27 kg
- Miscellaneous
- Package Contents
- ThinkSystem SR630 V4 7DG9A028EA Server
- Toolless Slide Rail Kit
- Security Features
- Chassis Intrusion Switch
- Power-on Password
- Administrator's Password
- Root of Trust module supporting TPM 2.0
- Platform Firmware Resiliency (PFR)
- Energy Star
- Yes
- TCO Certified
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- China Environmental Labeling Program (CELP)
- GREENGUARD
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
- ENERGY STAR 4.0
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
