- General Information
- Manufacturer
- Ergotron, Inc
- Manufacturer Website Address
- http://www.ergotron.co.uk
- Brand Name
- Ergotron
- Product Line
- StyleView
- Product Type

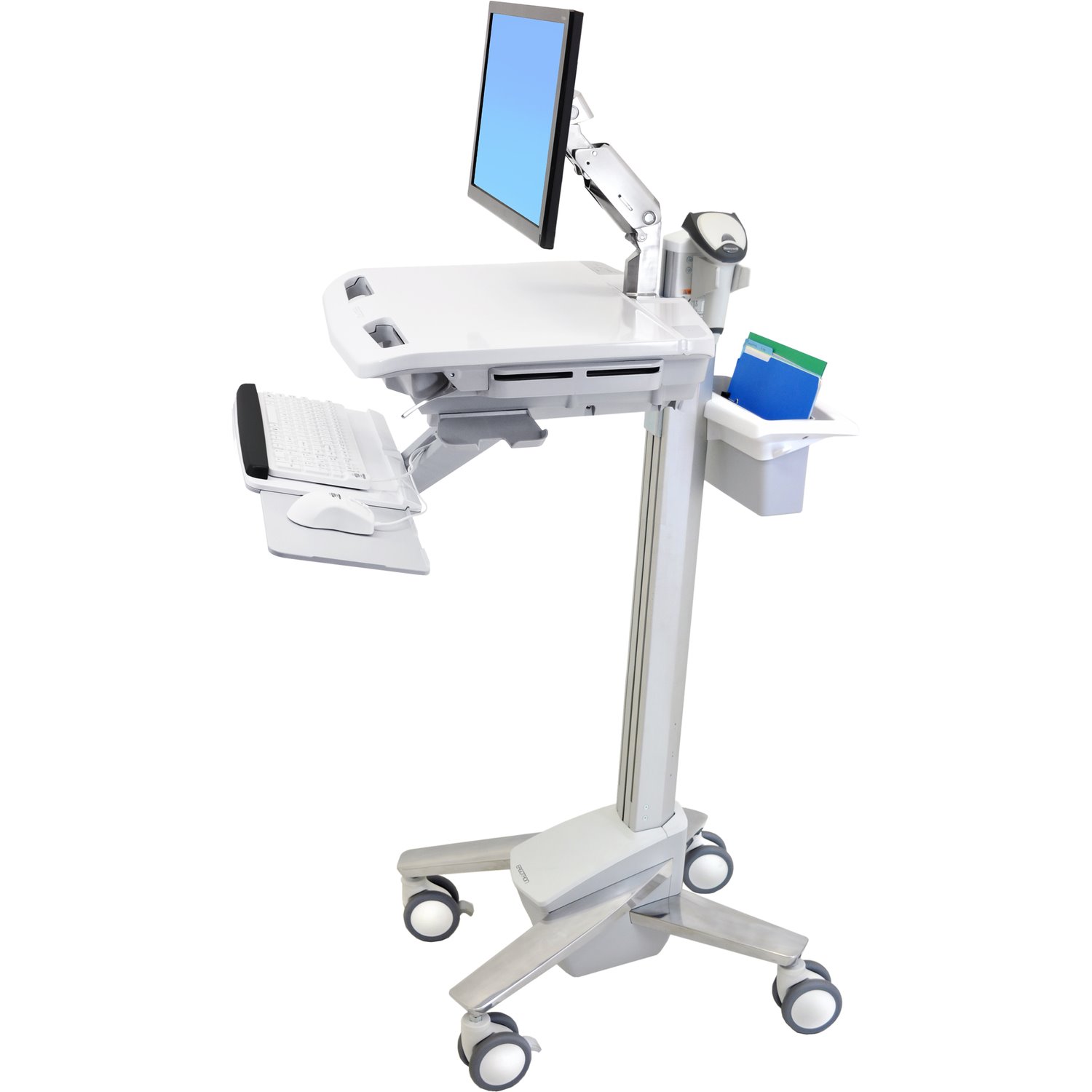

- Medical Trolley
This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray.
Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love!
- Product Information
- Maximum Load Capacity
- 15.88 kg
- Number of Casters
- 4
- Application/Usage
- Healthcare
- Features
- Non Powered
- Antimicrobial
- Lockable
- Cable Management
- Adjustable Height
- Physical Characteristics
- Color Family
- Dual Colour
- Product Color
- White
- Grey
- Polished Aluminum
- Product Material
- Aluminium
- Plastic
- Zinc Plated Steel
- Height
- 128.27 cm (50.50")
- Width
- 46.48 cm (18.30")
- Weight (Approximate)
- 26.76 kg
- Miscellaneous
- Additional Information
- LCD: 22"
- Lift: 27"
- Tilt: 65°
- Pan: 180°
- Rotation: 360° P/L
- Monitor up/down tilt = +60°/-5°
- ?Large, smooth worksurface; easy-to-clean design promotes infection control
- Rear basket keeps task-related items where they can be quickly accessed
- Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
- Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety
- Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC
- Portrait screen orientation may be incompatible with widescreen displays > 19"
- Surfaces are treated with antimicrobial for product protection
- LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)
- Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment-helps promote caregiver wellness and productivity
- StyleView's small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
- Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
- Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
VESA:
- 75 x 75mm
- 100 x 100mm
- Assembly Required
- No
