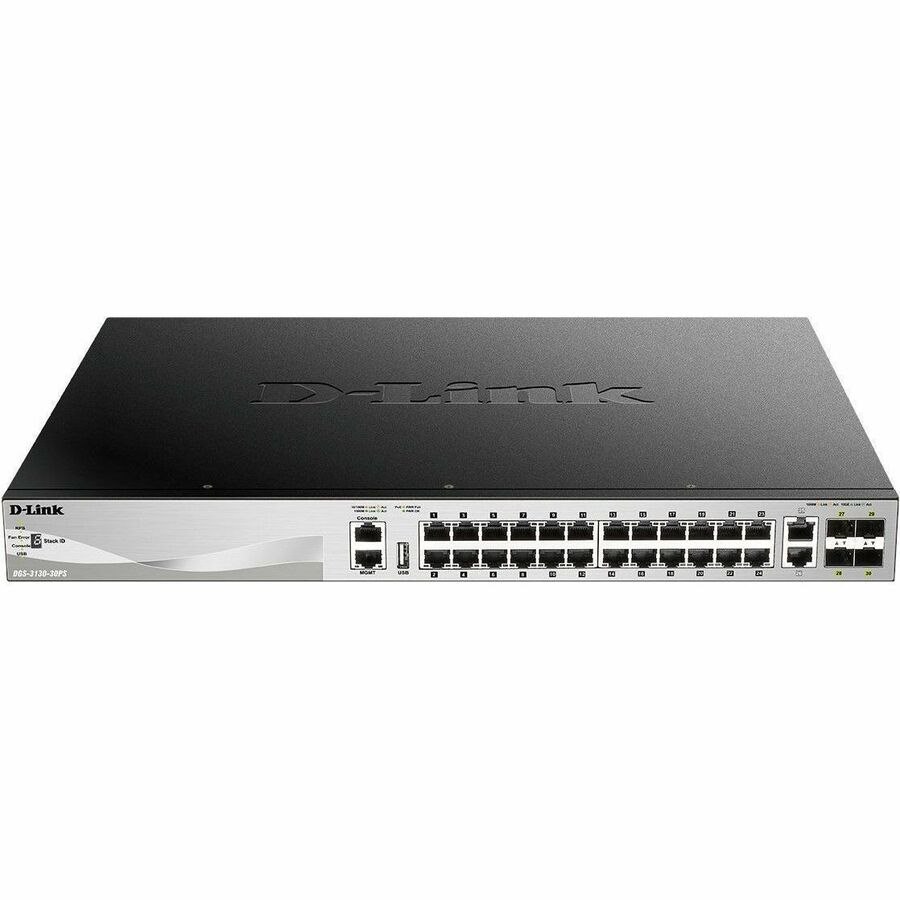

The DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches are designed to address the needs of small to medium-sized business networks by incorporating L2 and L3 features that enable the switches to be deployed in a variety of environments and topologies. Together the hardware and software enhancements combine to create a family of powerful, flexible and cost-effective switches. The DGS-3130 Series allows multiple switches to be connected to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. The DGS-3130 Series includes the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The DGS-3130 Series supports multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. A rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority
- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.co.uk
- Brand Name
- D-Link
- Product Series
- DGS-3130
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Energy Efficient
- DHCP Snooping
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Uplink Port
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE
- 2 x 10 Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 1000Base-T
- 10GBase-T
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3ah
- IEEE 802.1ag
- IEEE 802.1x
- IEEE 802.3x
- IEEE 802.1AX
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3af
- IEEE 802.3at
- Management & Protocols
- Manageable
- Yes
- Data Link Protocols
- HTTP
- HTTPS
- Reliability
- MTBF
- 279418 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 454.55 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Standalone
- Height
- 44 mm
- Width
- 440 mm
- Depth
- 430 mm
- Weight (Approximate)
- 5.60 kg
- Miscellaneous
- Application/Usage
- Network
- Small Business
- Medium Business
- IP Surveillance Network
- Video
- Security
- Server
