- General Information
- Manufacturer
- Datalogic S.p.A
- Manufacturer Website Address
- http://www.datalogic.com
- Brand Name
- Datalogic
- Product Type
- Device Server

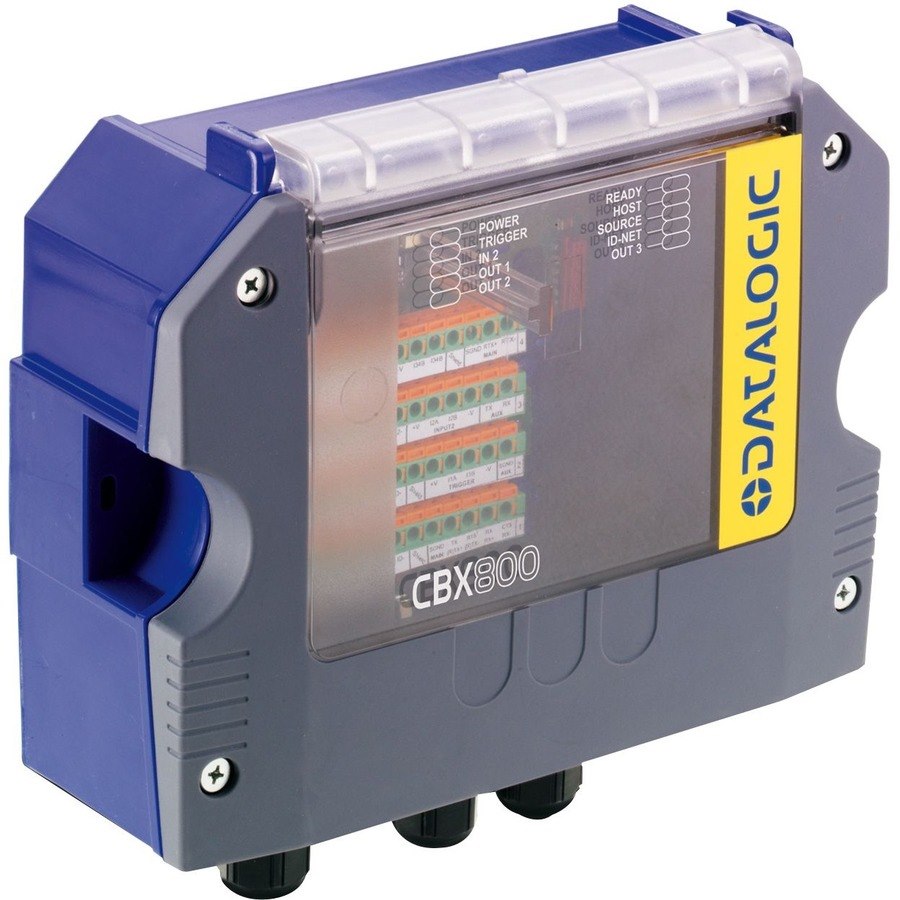

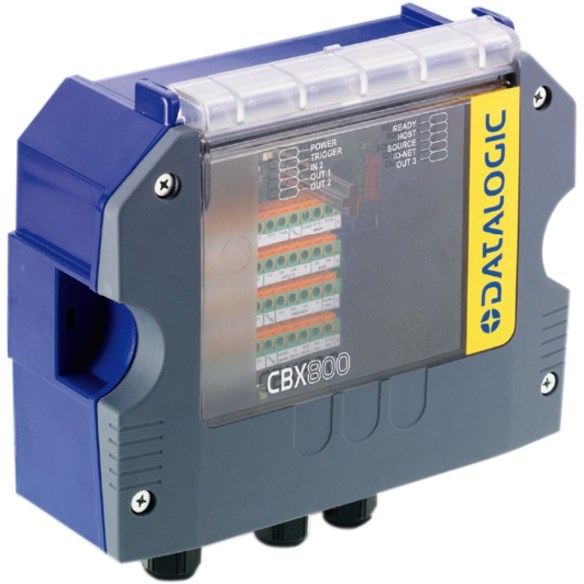

CBX800 is an industrial gateway allowing connection of devices equipped with a standard RS232 communication interface to the most common fieldbus systems, by means of a complete range of optional modules, and to ID-NET™ high speed communication network. CBX800 allows, with the same model, flexible interfacing of several devices (e.g. Datalogic Automation's 6K and 8K series, Hand Held Readers) to different networks. Three serial ports and high speed ID-NET™ communication interface, always available, can be combined with a complete range of optional modules providing connectivity to standard Ethernet TCP/IP network or to the most common fieldbus systems. CBX800 features IP65 (NEMA 4) protection class and 0 to 50 °C (32 to 122 °F) operating temperature.
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Ethernet Technology
- Ethernet
- Network Standard
- 10Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Physical Characteristics
- Height
- 71 mm
- Width
- 193 mm
- Depth
- 180 mm
- Weight (Approximate)
- 830 g
