- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.co.uk
- Brand Name
- D-Link
- Product Line
- Nuclias Connect
- Product Type
- Wireless Access Point

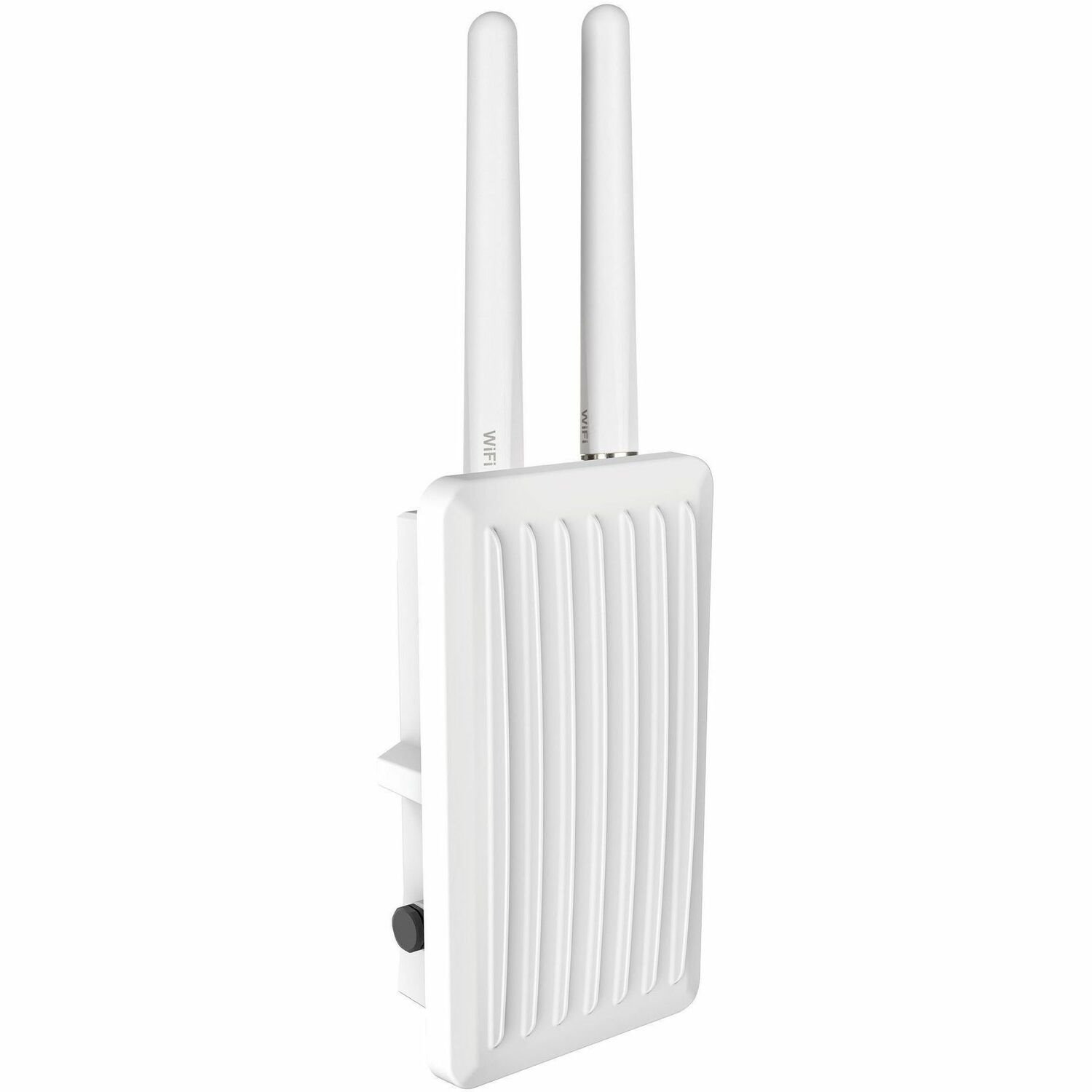

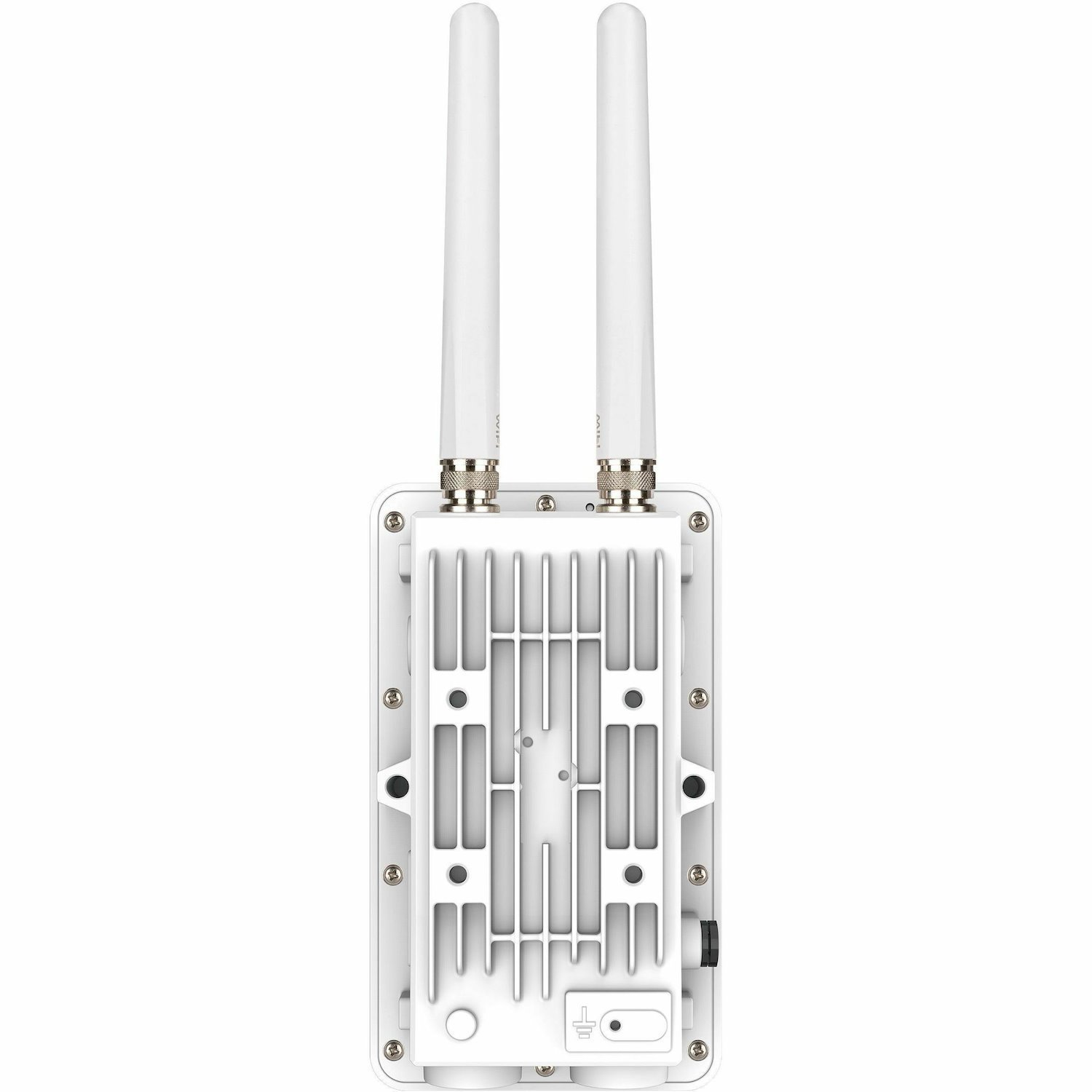

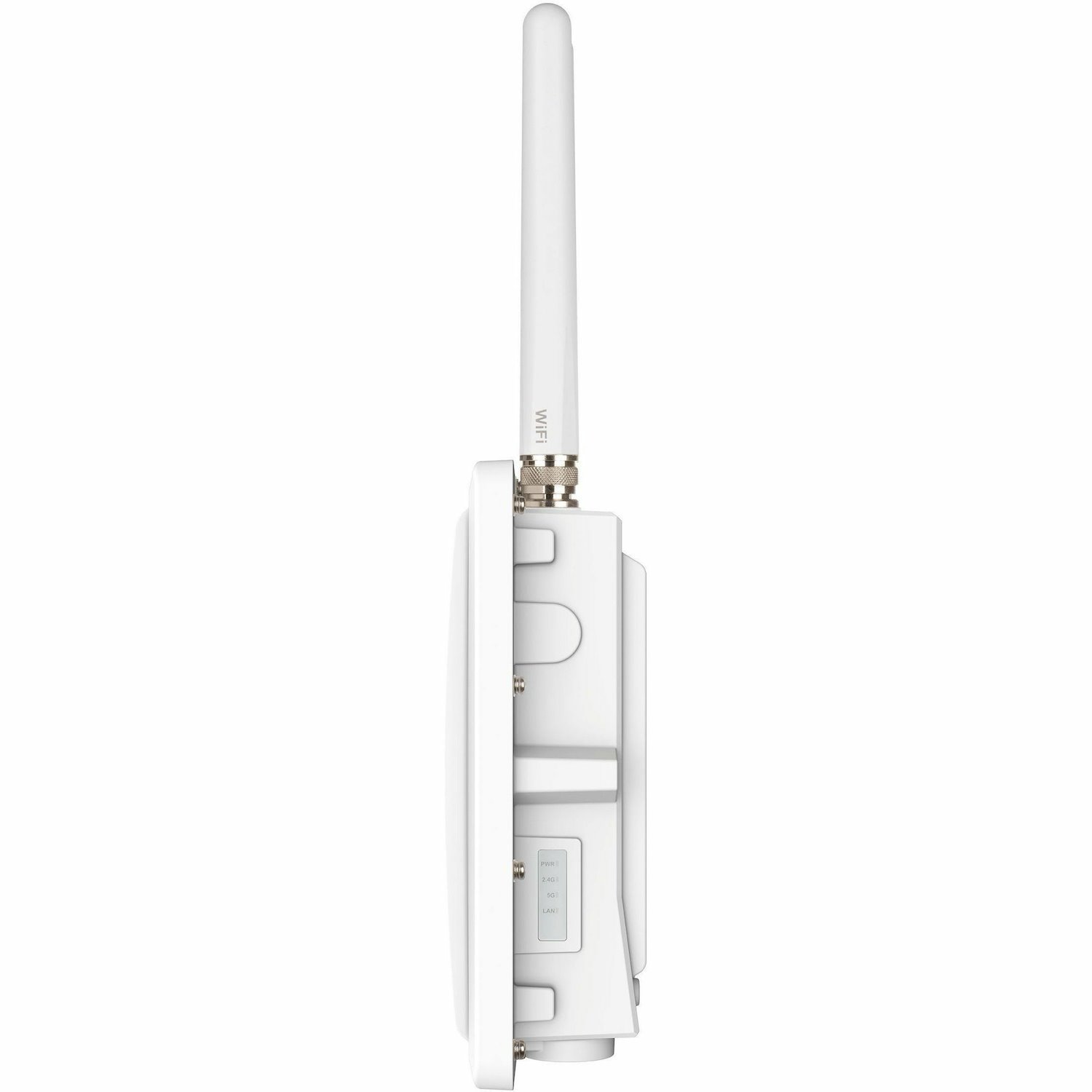

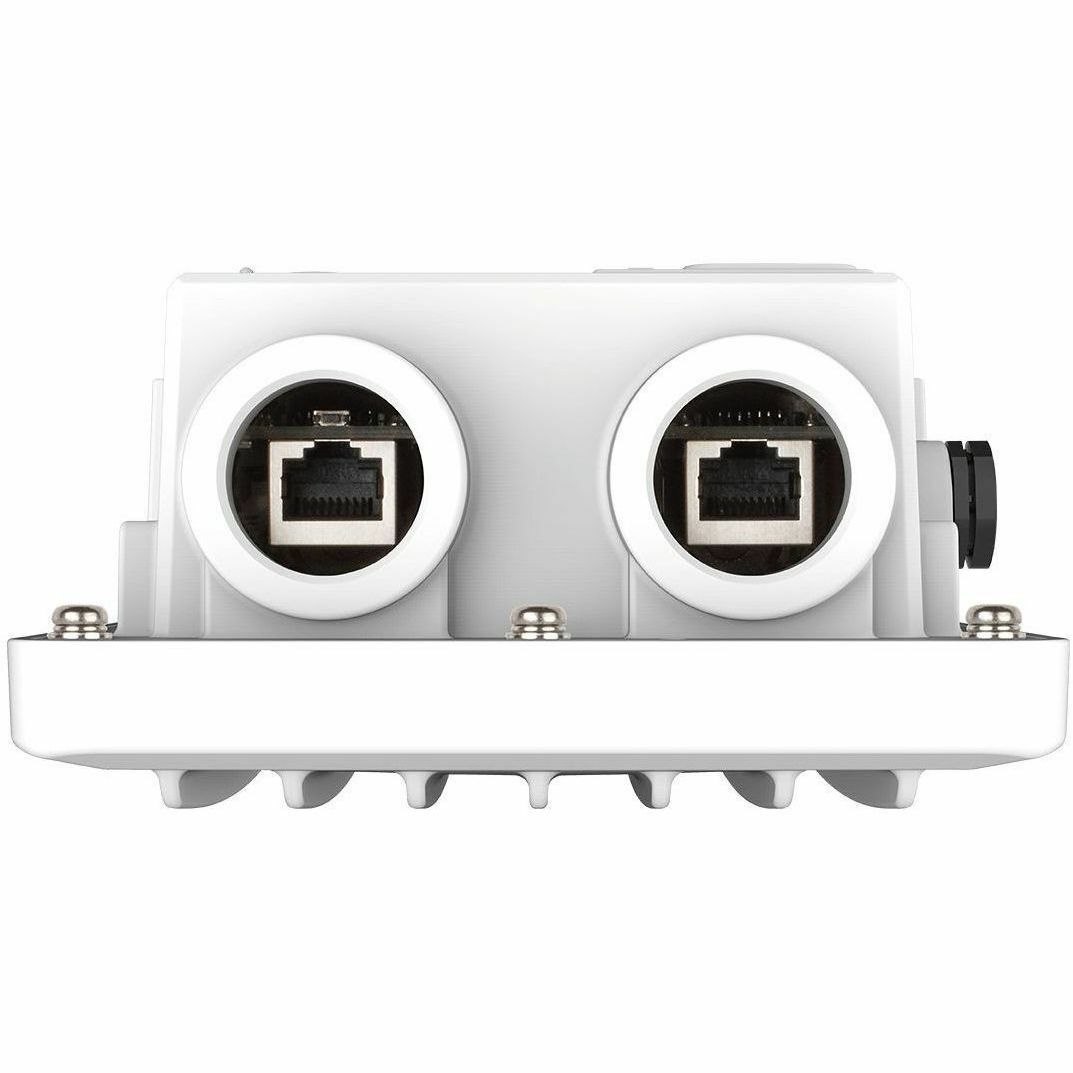

The DIS-3650AP is designed specifically to operate in harsh outdoor environments with its weatherproof design, wide operating temperature range and surge/ESD protection. It comes in a sturdy metal housing that can be pole, wall or DIN-mounted, ideal for industrial installations.
- Technical Information
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- 5 GHz
- Total Number of Antennas
- 2
- Number of External Antennas
- 2
- Indoor/Outdoor
- Outdoor
- Wireless Transmission Speed
- 867 Mbit/s
- Data Encryption
- Yes
- Encryption Standard
- WPA3-Personal
- WPA2-Personal
- WPA2-ENT
- WPA-Personal
- WPA-ENT
- 64-bit WEP
- 128-bit WEP
- WPA3
- Ingress Protection (IP) Rating
- IP67
- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 1
- PoE PD Port
- Yes
- Management Port
- Yes
- Network & Communication
- Wi-Fi Generation
- Wi-Fi 5
- Communication Protocols
- HTTP
- SSL
- RADIUS
- Wireless Performance
- AC1200
- Physical Characteristics
- Form Factor
- Wall Mountable
- Pole-mountable
- DIN Rail
- Antenna Form Factor
- External
- Height
- 220.5 mm
- Width
- 127.5 mm
- Depth
- 72.5 mm
- Weight (Approximate)
- 1.07 kg
- Miscellaneous
- Package Contents
- Nuclias Connect DIS-3650AP Wireless Access Point
- Wall/Pole-mount Bracket
- DIN-mount Bracket
- Certifications & Standards
- FCC
- CE3
- LVD
