- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Online S
- Product Type
- Delta Conversion Online UPS
The high-quality online double-conversion UPS that offers the ideal power protection for heavily loaded equipment racks
Designed for office and data center applications, the Online S Series adopts double-conversion topology to provide seamless Pure Sine Wave output. The products are compatible with generators to prolong power continuity. The UPSs also adopt ECO Mode to help save on energy costs, Smart Battery Management (SBM) to extend battery lifespan, and multifunction LCD readout to display precise information. The power management software allows users to easily control and monitor the UPS system.
- Technical Information

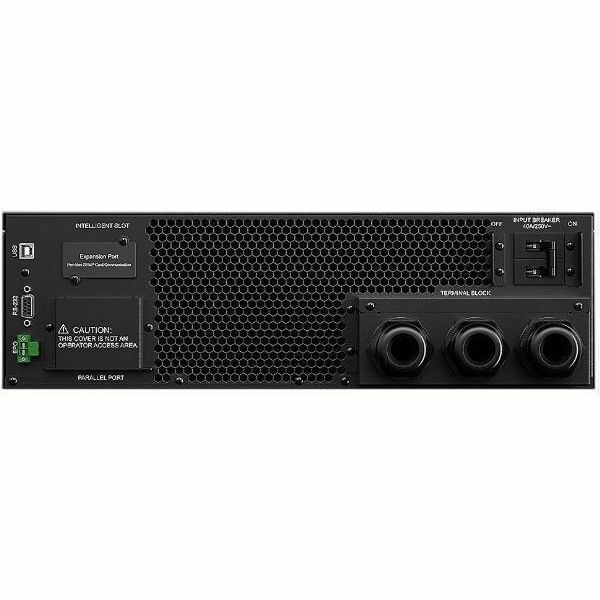

- Plug/Connector Type
- Hardwire Terminal Block
- Receptacle Type
- Hardwire Terminal Block
- Receptacle Detail
- 1 x Hardwire Terminal Block
- Overload Protection
- Yes
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Phase
- Single Phase
- Application/Usage
- Data Center
- Office
- Generator
- SOHO Office
- Factory
- Train Station
- Server Room
- Supermarket
- Airport
- Surge Suppression
- Yes
- Power Description
- Load Capacity (VA)
- 6 kVA
- Load Capacity (Watt)
- 5.40 kW
- Input Voltage
- 230 V AC
- 120 V AC
- Input Voltage Range
- 110 V AC - 276 V AC
- Input Current
- 27.30 A
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 445 J
- Circuit Breaker
- Yes
- Input Power Factor
- 0.99
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Controls/Indicators
- Status Indicators
LED Status Indicators
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Number of USB Ports
- 1
- Battery Information
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Operating Humidity
- 0% - 90%
- Thermal Dissipation
- 1603 BTU/h
- Physical Characteristics
- Height
- 130.5 mm
- Width
- 438 mm
- Depth
- 680 mm
- Rack Height
- 3U
- Form Factor

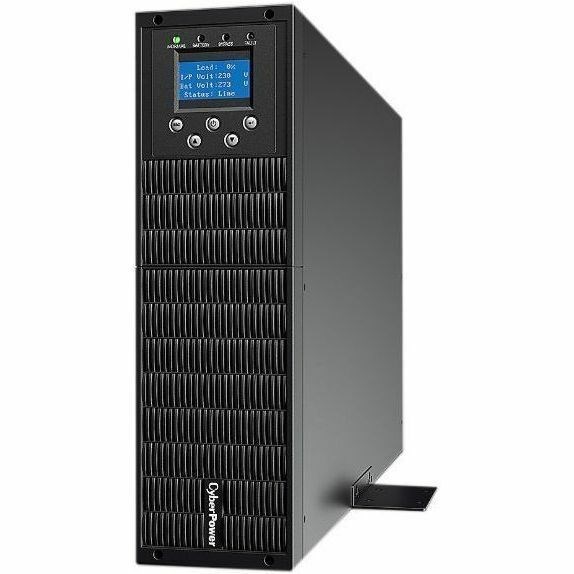

- Tower/Rack Convertible
- Weight (Approximate)
- 17.50 kg
- Miscellaneous
- Certifications & Standards
CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
