- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Secure
- Product Series
- 200
- Marketing Information

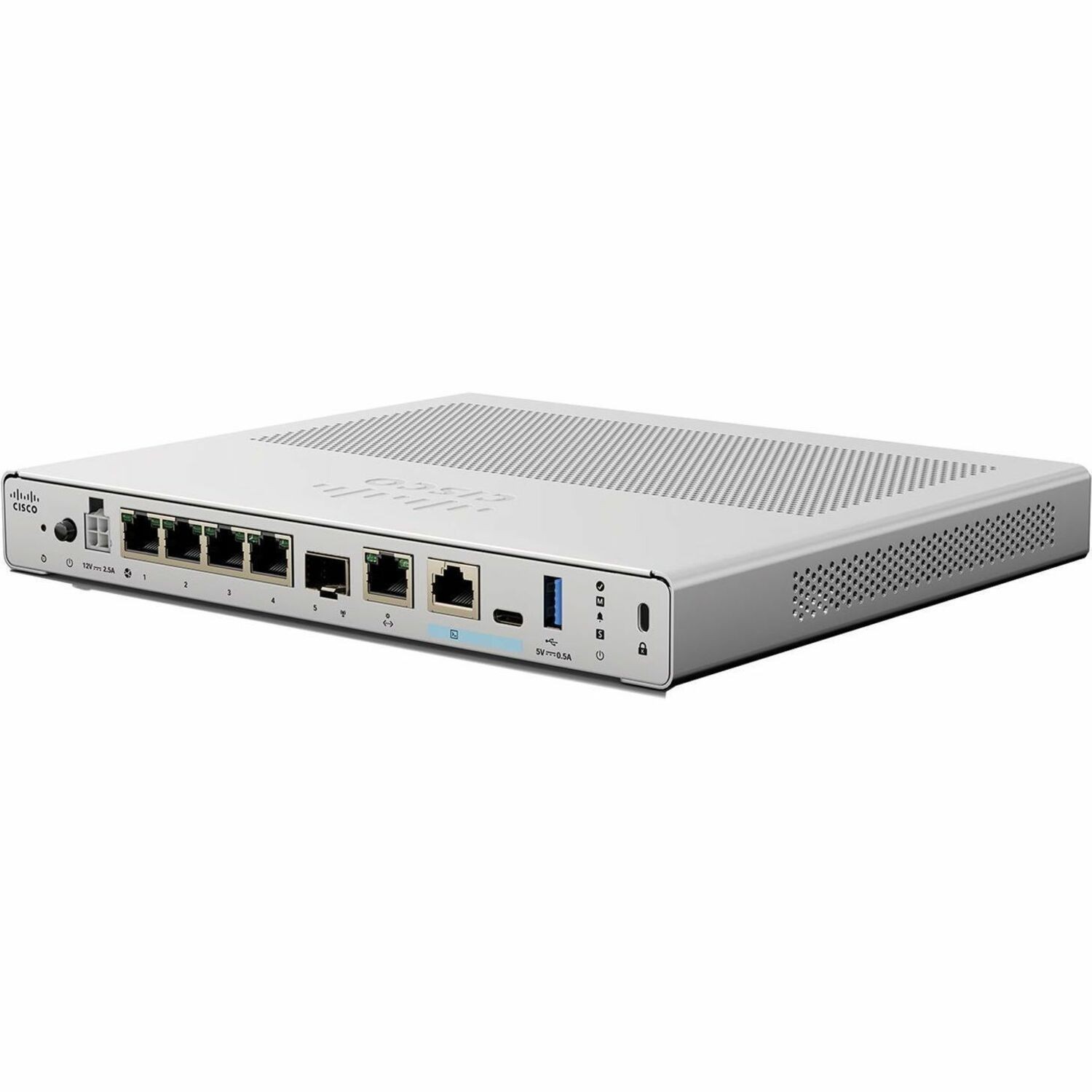

The Cisco® Secure Firewall 200 Series offers next-generation firewall capabilities specifically designed for distributed enterprises and small branch locations. It provides robust, costeffective security and simplified management within a compact form factor, ensuring secure and optimized connectivity at the network edge. The 200 Series extends Cisco's Hybrid Mesh Firewall architecture to branch edges, providing AI-powered inspection and consistent security policies. It integrates SD-WAN capabilities for enhanced application performance and reliable user access. Additionally, the 200 Series delivers application and user control, efficient segmentation, and advanced security features tailored for cost-sensitive environments. Cisco Secure Firewall 220 is the first model in the 200 series.
Highlights | Robust connectivity
- Achieve up to 1.5 Gbps throughput from a fanless desktop firewall when next-generation firewall capabilities are enabled. Enable the highavailability feature for continuous uptime.
- Connect branch offices to the hybrid mesh firewall architecture using the 1G Small Form-factor Pluggable (SFP) port. Network and cryptographic operations are accelerated inline by leveraging the System on a Chip (SoC).
Simplified management
- Manage hundreds of firewalls across various global branch locations using a single unified manager, available in both on-premises and cloud-delivered platforms.
- Rapidly deploy firewalls across multiple branches using pre-provisioning templates. Utilize Cisco AI Assistant to streamline rule creation and reporting.
Superior visibility
- Leverage the AI-powered Encrypted Visibility Engine (EVE) to gain insights into and control over encrypted traffic, including Transport Layer Security (TLS) 1.3, thereby eliminating the need to decrypt traffic.
- Protect networks against zero-day vulnerabilities with SnortML-a machine learning-based exploit detection technology integrated into the industryleading Snort 3 Intrusion Prevention System (IPS).
Seamless integration
- Achieve comprehensive, end-to-end protection through native integration with Cisco Umbrella®, Cisco Secure Access, and Cisco Endpoint Security.
- Optimize application performance and user experience through seamlessly integrated SDWAN capabilities, accelerated by Zero-Touch Provisioning (ZTP).
- Product Type
- Network Security/Firewall Appliance
- Technical Information
- Firewall Protection Supported
- Network Protection
- Application Control
- Stateful Inspection Firewall
- Firewall Throughput
- 2 Gbit/s
- Number of VPN Supported
- 50
- Data Link Protocols
- HTTP
- FTP
- SMTP
- TCP/UDP
- Connectivity Technology
- Wired
- New Connections Per Second
- 80000
- AI-powered
- Yes
- AI Features
- Security
- Interfaces/Ports
- Total Number of Ports
- 4
- USB
- Yes
- Number of Network (RJ-45) Ports
- 4
- Media & Performance
- VPN Throughput
- 230.40 MB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 1000Base-T
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 1
- Management & Protocols
- Manageable
- Yes
- Power Description
- Frequency
- 50 Hz
- 60 Hz
- Power Consumption
- 19 W
- Maximum Power Supply Wattage
- 30 W
- Physical Characteristics
- Form Factor
- Compact
- Desktop
- Rack-mountable
- Wall Mountable
- Height
- 29.2 mm
- Width
- 233.7 mm
- Depth
- 198.1 mm
- Weight (Approximate)
- 1.18 kg
- Miscellaneous
- Application/Usage
- Security
- Network
- Branch Office
- Certifications & Standards
- CE 2004/108/EC
- CE 2006/108/EC
- UL 60950-1
- UL 62368-1
- CAN/CSA-C22.2 No. 62368-1
- EN 62368-1
- IEC 62368-1
- AS/NZS 62368-1
- 47CFR Part 15 (CFR 47) Class A (FCC Class A)
- AS/NZS CISPR 32 Class A
- CISPR 32 Class A
- EN55032 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KS C 9832 Class A
- CNS15936 Class A
- EN300386
- QCVN 118:2018
- EN55035
- CISPR 35
- EN300386
- KS C 9835
- QCVN 18:2022
- EN61000-3-2/-3
- EN61000-4-2/-3/-4/-5/-6/-8/-11
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
