- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Type
- HWIC

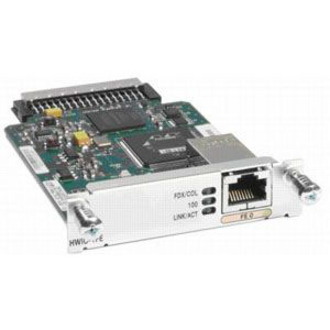

The Cisco Fast Ethernet HWIC (High-Speed WAN Interface Card) provide Cisco modular and integrated services routers with additional line-rate Layer 3 routed ports.
- Technical Information
- Application/Usage
- Wide Area Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 1 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X LAN
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 3
- Category 4
- Category 5
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Network Technology
- 10Base-T
- 10/100Base-TX
- Maximum Data Transfer Rate
- 100
- Physical Characteristics
- Height
- 19.3 mm
- Width
- 78.2 mm
- Depth
- 120.4 mm
- Weight (Approximate)
- 63.5 g
- Miscellaneous
- Additional Information
- Refurbished
- No Returns
- Unique MAC address (not shared with any other interface on the router), assigned MAC address to interface, and subinterfaces
- ACLs
- MAC address filtering
- MPLS features as supported by platform
- Network Address Translation (NAT)
- Point-to-Point Protocol over Ethernet (PPPoE) client
- Compatibility
- Cisco 1841
- Cisco 2801
- Cisco 2811
- Cisco 2821
- Cisco 2851
- Cisco 3825
- Cisco 3845
