- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- 3750
- Product Type
- Ethernet Switch
The Cisco Catalyst 3750-24TS switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Number of Network (RJ-45) Ports
- 24
- Port/Expansion Slot Details
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 5
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10Base-T
- 10/100Base-TX
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 4
- Management & Protocols
- Manageable
- Yes
- Management
- Telnet
- SNMP v1, v2c, and v3
- 4000 VLAN IDs are supported
- Cisco Network Assistant Software
- SPAN works across all the ports in a stack
- CiscoWorks for network-wide management
- Cisco Cluster Management Suite (CMS) Software
- Command-line interface (CLI) for detailed configuration
- Web-based tool for quick configuration based on pre-set templates
- Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports
- Up to 1005 VLANs per switch or stack and up to 128 Spanning-Tree instances per switch are supported.
- Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events)
- Security Features
- RADIUS
- TACACS+
- Port-based ACLs (PACLs)
- Secure Shell (SSH) Protocol
- Spanning Tree Root Guard (STRG)
- Cisco CMS Software security wizards
- 1000 access control entries (ACEs) are supported
- IEEE 802.1x allows dynamic, port-based security, providing user authentication
- Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.
- IEEE 802.1x with an ACL assignment allows for specific identity-based security policies regardless of where the user is connected.
- Memory
- Standard Memory
- 128 MB
- Flash Memory
- 16 MB
- Reliability
- MTBF
- 294928 Hour
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Form Factor
- Rack-mountable
- Wall Mountable
- Desktop
- Height
- 43.9 mm
- Width
- 444.5 mm
- Depth
- 299.7 mm
- Weight (Approximate)
- 3.63 kg
- Miscellaneous
- Additional Information
- Refurbished
- No Returns
- 11,000 unicast routes
- Acoustic Noise: 42 dB
- Configurable up to 1000 IGMP groups and multicast routes
- The connector offers a 675W redundant power system (RPS) that supports up to 6 external network devices and provides power to 1 failed device at a time.
- Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports.

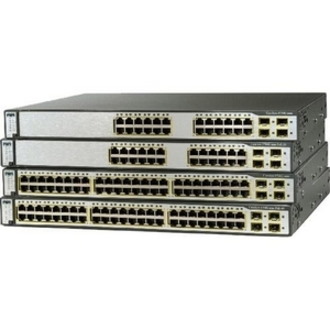

- The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs
