- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- 1800
- Product Type
- Router

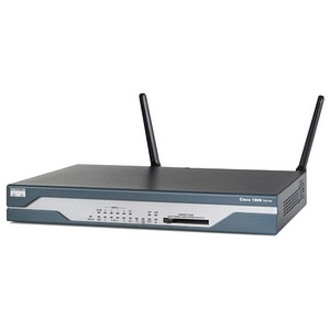

The 1801 Integrated Services Router provides intelligently embed data, security, and wireless technology into a single, resilient system for fast, secure, scalable delivery of mission-critical business applications. The 1801 Integrated Services Router's architecture has been specifically designed to meet requirements of small to medium-sized businesses (SMBs), enterprise branch offices, and service provider-managed services applications for delivery of concurrent services at wire-speed performance.
- Interfaces/Ports
- Total Number of Ports
- 11
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 8
- Number of Broadband (RJ-45) Ports
- 1
- Media & Performance
- Carrier Supported
- ISDN/DSL
- Broadband Transmission Speed
- 24 Mbit/s
- Broadband Transmission Technology
- ADSL
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- ISDN BRI (S/T)
- Management & Protocols
- Security Features
- MAC authentication/filter encryption
- RADIUS
- Message integrity check (MIC)
- SSIDs: 16
- MBSSIDs: 8
- IPSec Tunnels Supported: 50
- IPSec VPN Performance: 40 Mbps 3DES @ 1400 byte packets
- Cisco IOS Firewall Performance: 100 Mbps @ 1400 byte packets
- Intrusion Prevention System (IPS)
- URL Filtering
- Memory
- Standard Memory
- 128 MB
- Maximum Memory Supported
- 384 MB
- Memory Technology
- DRAM
- Flash Memory
- 32 MB
- Memory Card Supported
- CompactFlash
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Desktop
- Wall Mountable
- Rack-mountable
- Height
- 44.5 mm
- Width
- 323.6 mm
- Depth
- 246.4 mm
- Weight (Approximate)
- 2.77 kg
- Miscellaneous
- Additional Information
- Refurbished
- No Returns
- Recommended Number of Users: 50
- PoE Support
- VLAN Configured: 8
- DRAM: Synchronous dual in-line memory module (DIMM) SDRAM (1 DIMM slot)
ADSL Standards:
- G.992.1 (ADSL)
- G.992.3 (ADSL2)
- G.992.5 (ADSL2+)
- T1.413 ANSI ADSL DMT issue 2
