- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- ProArt
- Product Type
- Desktop Motherboard

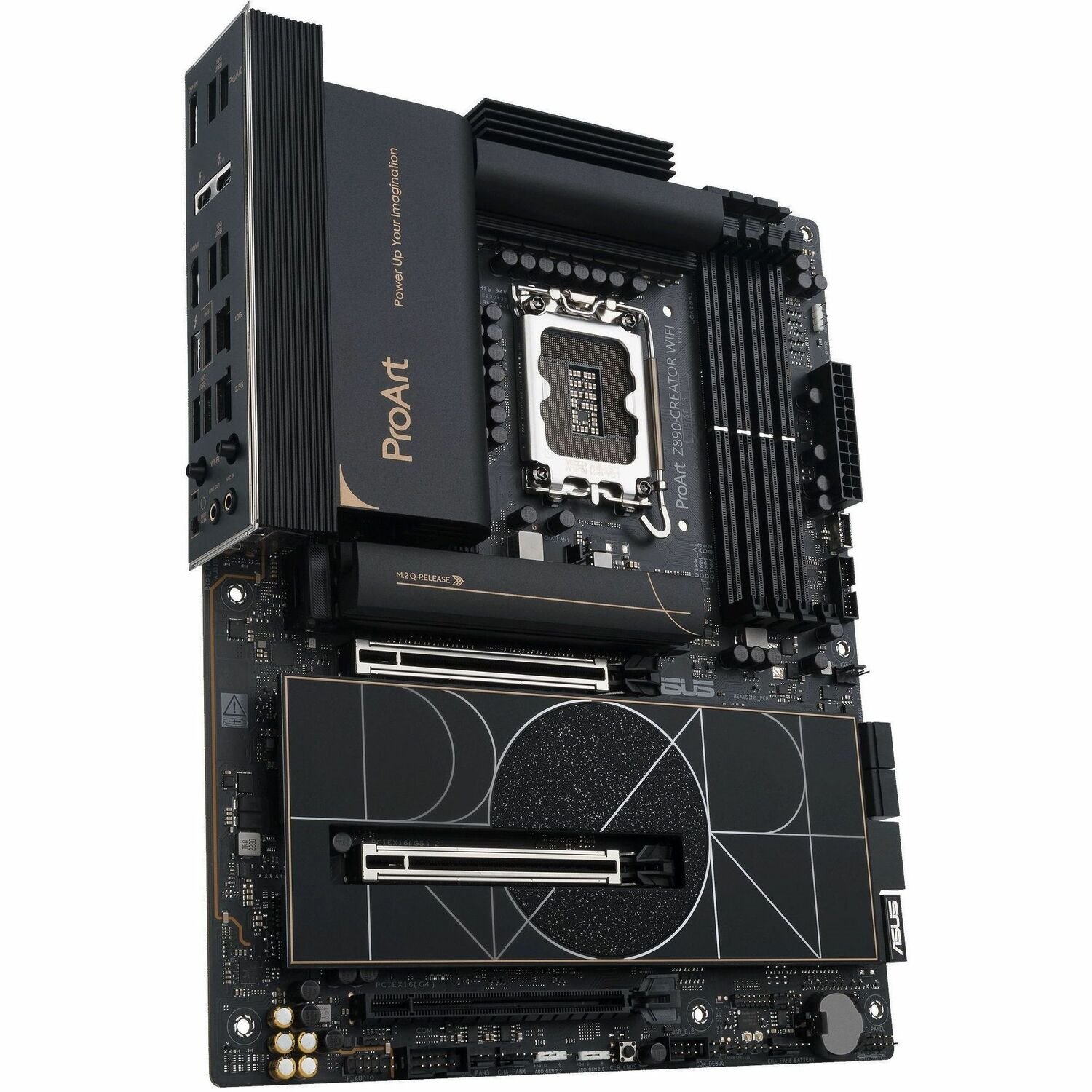

ProArt Z890-CREATOR WIFI
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
All You Need for Maximum Productivity | Thunderbolt Connectivity
Get immersed in your creations with two Thunderbolt 5 and one USB4 / Thunderbolt ports for connecting to all your compatible content-creation gadgets, enjoying up to 80 Gbps of bi-directional bandwidth, and up to 120 Gbps with Bandwidth Boost. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort In port on the rear I/O panel and direct the video output via the Thunderbolt 5 port.
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z890
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1851
- Processor Supported
- Core Ultra
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 9066 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.4
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- 10Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11be
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 5.0
- PCI Express 4.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 10
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
HDMI 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 5
- Total Number of Onboard USB Ports
- 5
- Number of Onboard USB 2.0 Ports
- 2
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Package Contents
- PROART Z890-CREATOR WIFI Desktop Motherboard
- 2 x SATA 6Gb/s Cables
- 1 x ASUS WiFi Q-Antenna
- 1 x Q-Connector
- 2 x M.2 Q-Latch Packages
- 2 x M.2 Rubber Packages
- 1 x ProArt Accessory Bag
- 1 x ACC Express Activation Key Card
- 1 x Quick Start Guide
- Brand Compatibility
- Intel
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
