- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS RT
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
2 years repair or replace
- Technical Information
- Plug/Connector Type
- Hard Wire 3-wire
- Receptacle Type
- Hard Wire 3-wire (H N + E)
- Receptacle Detail
- 1 x Hard Wire 3-wire (H N + E)
- Efficiency Detail
- 92% (AC Mode)
- Surge Suppression
- Yes
- Features
- Audible Alarm
- Cold Start Function
- Power Description
- Load Capacity (VA)
- 5 kVA
- Load Capacity (Watt)
- 3.50 kW
- Input Voltage
- 230 V AC
- Input Voltage Range
- 160 V AC - 280 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 480 J
- Circuit Breaker
- Yes
- Management
- Network Management
- SmartSlot
- Relay-MS Card
- Alarm
- Low Battery
- Overload
- On Battery
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB
- No
- EPO Port
- Yes
- Expansion Slot Detail
- 1 (total) / 1 (free) x SmartSlot
- Battery Information
- Number of Batteries
- 2
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 5 Minute
- Backup/Run Time (Half Load)
- 15.40 Minute
- Battery Life
- 5 Year
- Typical Battery Recharge Time
- 2.50 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -15°C - 45°C
- Maximum Operating Elevation
- 3.05 km
- Maximum Storage Elevation
- 15.24 km
- Operating Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 55 dB(A)
- Thermal Dissipation
- 1040 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 432 mm
- Width
- 130 mm
- Depth
- 660 mm
- Rack Height
- 3U
- Form Factor
- Rack/Tower
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 54.55 kg
- Miscellaneous
- Package Contents

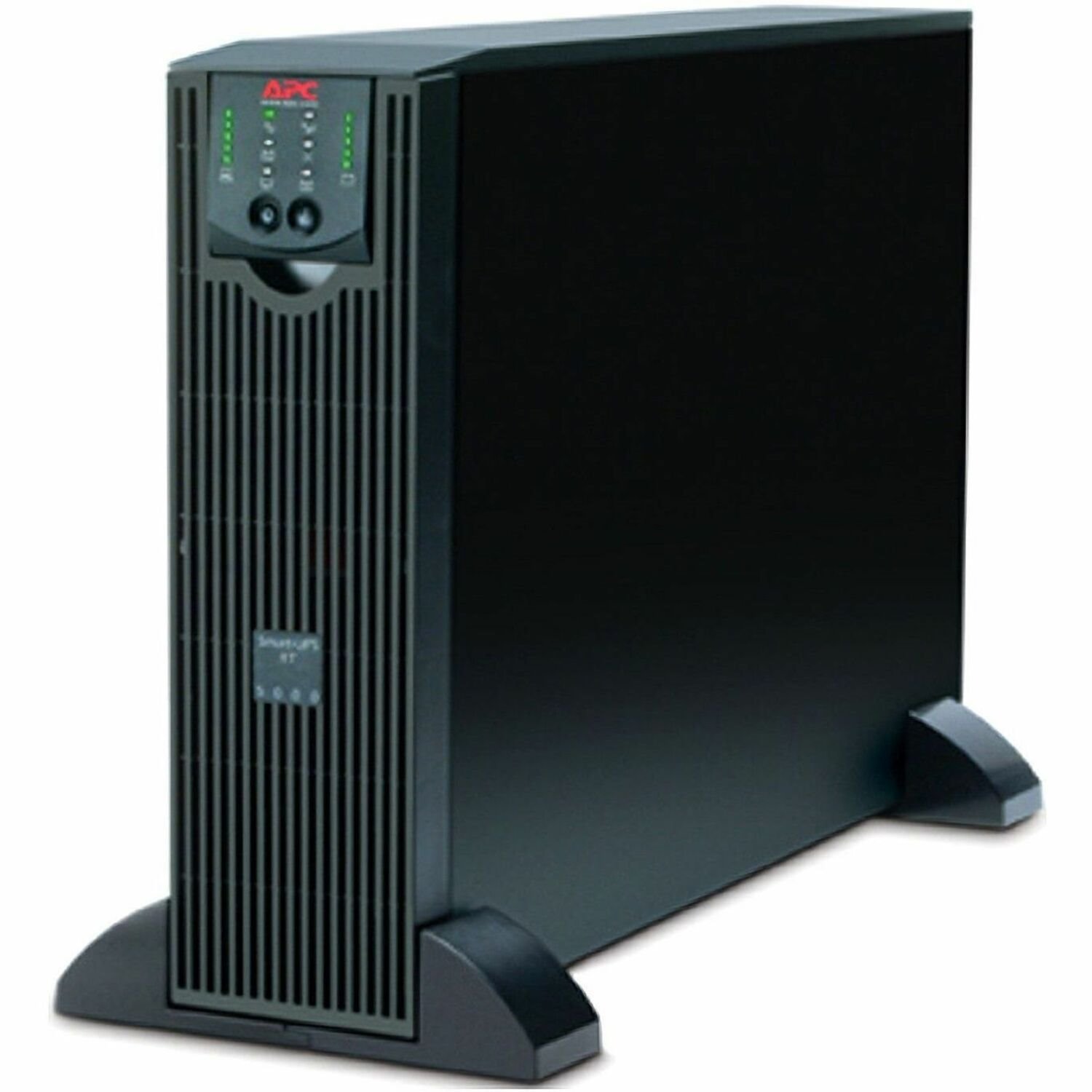

- Smart-UPS RT 5000VA Rack/Tower UPS
- Relay Board
- Smart UPS Signaling Cable RS-232
- User Manual
- Certifications & Standards
- cUL Listed
- CE
- FCC Part 15 Class A
- VDE
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
- IP20
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
